Durable Cnc Welding Motoman 6 Axis Industrial Robot Arm With High Performance

Informasi Dasar
Place of Origin: China
Nama merek: HWASHI
Sertifikasi: CE/CCC/ISO
Model Number: HS-RAW06
Minimum Order Quantity: 1 set
Harga: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Informasi Detail
Name: 6 DOF CNC Industrial Automatic Arm Robot Welding Equipment with Robotic Arm Application: Welding for sheet metal, automobile parts, etc.
Size: 600x1300x1700mm Max Reaching Distance: 1437mm
Repeated Positioning Accuracy: Within ±0.08mm Servo Motor: All shaft-driven brake
Weight: About 170kg Service Life: 8-10 years
Cahaya Tinggi:

robotic spot welding machine

,

spot welding robots


Deskripsi Produk

6 DOF CNC Industrial Automatic Arm Robot Welding Equipment with Robotic Arm





SPECIFICATION

Name HS-RAW06
Type Standard Type with integrated torch
Structure 6-axis, independent multiple articulation
Wrist Load 6kg
Motion Range Max Reaching Distance 1437mm
Min Reaching Distance 404mm
Front and Back Motion Range 1033mm



Motion

Speed

Arm Rotation 225°/S
Lifting Arm 225°/S
Stretching 225°/S
Wrist Rotation 425°/S
Bending 425°/S
Reverse 629°/S
Repeated Positioning Accuracy Within ±0.08mm
Servo Motor Total Power 3400W
Brake Specs All shaft-driven brake
Installation Normal
Weight About 170kg

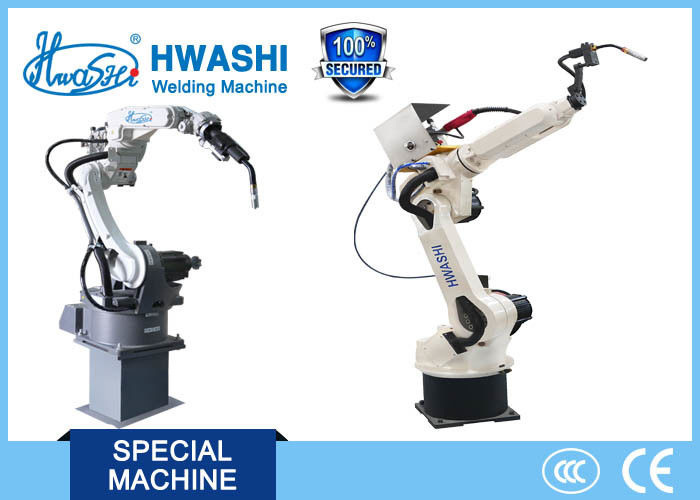

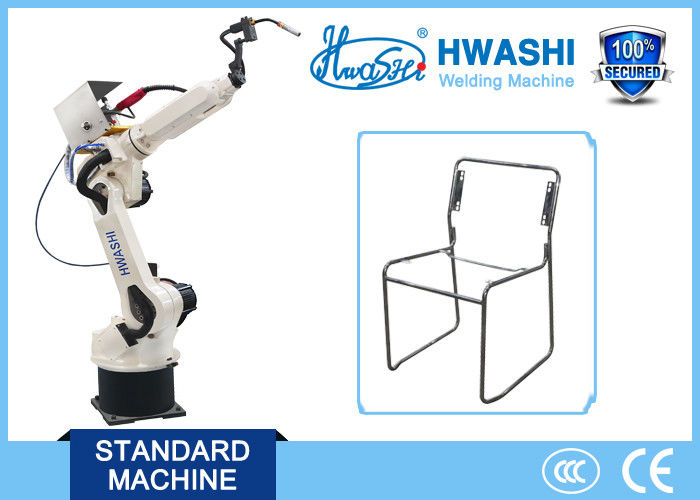

Product Show





Durable Cnc Welding Motoman 6 Axis Industrial Robot Arm With High Performance 0

Durable Cnc Welding Motoman 6 Axis Industrial Robot Arm With High Performance 1

Durable Cnc Welding Motoman 6 Axis Industrial Robot Arm With High Performance 2

Durable Cnc Welding Motoman 6 Axis Industrial Robot Arm With High Performance 3

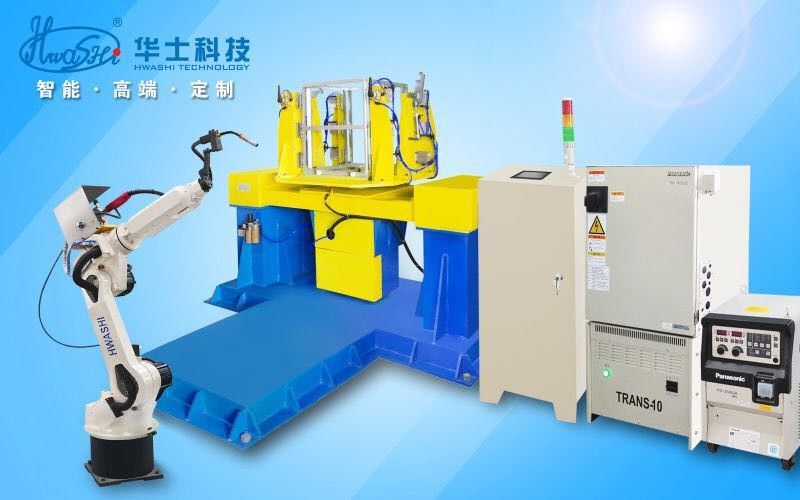

DESCRIPTION

This automatic robot work station to achieve automatic work piece clamping and robot automatic welding process. It is designed with two sets of welding positioner. When one is under welding process, another one could be prepared for loading work piece.





APPLICATION

Applied to loading, unloading and welding industry.





FEATURES

1. Working station power supply control system: control power supply circuit, circuit-breaker protection. It is safe and reliable in use.



2. Welding system: Panasonic YD350-GR MIG welding machine with automatic wire feeding system. Stable performance.



3. Welding gun system: famous brand TBI welding gun.



4. Welding gun cleaning system: TBI brand.



5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600 rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve 180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.



6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable clamping force.



7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working process.



8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for operation.



9. Safety protective fence system: for preventing people from getting close to the welding position and avoid accidents. Safety production.





Machine CONNECTION



Durable Cnc Welding Motoman 6 Axis Industrial Robot Arm With High Performance 4

No.

Item

1

Welding Gun

2

Robot Arm

3

Wire feeder

4

Wire Filling Tube

5

Gas Flow meter

6

Robot Arm Connecting Cable

7

Robot Arm Controller

8 Demonstrator
9 Transformer
10 Welding Power Supply
11 Cable
12 Safty Support
13 Wire Reel



**************************************************************************************

We can design and manufacture the welding equipment according to your request/drawing, contact us please, we will offer you a suit solution and support you to success.



COMPETITIVE ADVANTAGE

1. Professional

Over 20 years of experience in wire mesh industry and export more than 50 countries. Hwashi is the real professional manufacture.



2. Product Quality

The quality of products is the key of enterprise survival. Hwashi is ISO9001:2000 certificated manufacture.



3. Reasonable Price

We’ll exact control each producing process to reduce cost for our customers.

After clients receive the quotation, we’ll show you the rationality of the price and the difference between our products and other supplier’s products.



4. Delivery Time

The customer’s need is delivery on time, rather an excuse.

We’ll make a production plan before producing, and the sales will regularly inform the production schedule and process to the customers.



5. Communication

English is the basic and other languages can be understood.

All customers’ e-mail will be replied within 2 hours at working hours and must be replied within 12 hours at non-working hours.



6. Customized

Personalized, professional service: we can provide different programs according to customers’ requirement, thus make customers choose the best and most appropriate one.



7. Technical Assistance

24 hours technical support by email. Our professional team is always here willing to be your technical consultant.











Durable Cnc Welding Motoman 6 Axis Industrial Robot Arm With High Performance 5
