Professional 6 Axis Indstrial CNC Welding Robot With Servo Motor

Professional 6 Axis Indstrial CNC Welding Robot With Servo Motor

spot welding robots

automatic welding robot

Place of Origin:

China

Nama merek:

HWASHI

Sertifikasi:

CE/CCC/ISO

Model Number:

HS-RAW06

Hubungi kami

Permintaan Penawaran
Rincian Produk
Structure:
6-axis, independent multiple articulation
Service Life:
8-10 years
Name:
China 6 Axis Indstrial CNC Welding Robot
Application:
Welding for sheet metal, automobile parts, etc.
Type:
Standard Type with integrated torch
Weight:
170kg
Repeated Positioning Accuracy:
Within ±0.08mm
Wrist Load:
6kg
Ketentuan Pembayaran & Pengiriman
Minimum Order Quantity
1 set
Harga
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Deskripsi Produk

Professional 6 Axis Indstrial CNC Welding Robot With Servo Motor





SPECIFICATION

Model HS-RAW06
Type Standard Type with integrated torch
Structure 6-axis, independent multiple articulation
Wrist Load 6kg
Motion Range Max Reaching Distance 1437mm
Min Reaching Distance 404mm
Front and Back Motion Range 1033mm



Motion

Speed

Arm Rotation 225°/S
Lifting Arm 225°/S
Stretching 225°/S
Wrist Rotation 425°/S
Bending 425°/S
Reverse 629°/S
Repeated Positioning Accuracy Within ±0.08mm
Servo Motor Total Power 3400W
Brake Specs All shaft-driven brake
Installation Normal
Weight About 170kg





DESCRIPTION

This automatic robot work station to achieve automatic work piece clamping and robot automatic welding process. It is designed with two sets of welding positioner. When one is under welding process, another one could be prepared for loading work piece.



***********************************************************************************************

We can design and manufacture the welding equipment according to your request/drawing, contact us please, we will offer you a suit solution and support you to success.



APPLICATION

Applied to loading, unloading and welding industry.





FEATURES:

1. All digital centralized control of all welding parameters;



2. No splash happens during MIG/MAG and pulsed MIG welding on any material or any shielding gas.



3. Achieve good performance no matter during non-contact arcing mode or manual welding.



4. Personalized welding program storage function.



5. Energy saving function: Only when required should the power cooling fan and cooling welding gun             start.



6. Be able to monitor the welding parameter and reuse. If needed, the data could be printed out.



7. Be able to use preset parameter or adjust the data to control program.



8. Provide automatic fault diagnosed function.



9. Digital control burn-back. Under any condition or when finish welding on the metal, be able to eliminate       the small ball at the end of filling wire to ensure successful arcing next time.



10. Cycle control of arcing, arc crater filling, and arc stopping.



11. Low energy loss.





STRUCTURE

1. Working station power supply control system: control power supply circuit, circuit-breaker protection. It       is safe and reliable in use.



2. Welding system: Panasonic YD350-GR MIG welding machine with automatic wire feeding system.               Stable performance.



3. Welding gun system: famous brand TBI welding gun.



4. Welding gun cleaning system: TBI brand.



5. Working station positioner: It is designed with two sets of working table. Single table could achieve 3600      rotation which is suitable for multi-angle welding. Two sets of positioner system could achieve                    180°rotation through spindle motor. It could achieve alternative use so as to increase efficiency.



6. Work piece clamping system: the cylinders will push and clamp the work piece. Balanced and stable           clamping force.



7. Arc light baffle: cylinder pushes automatic rotation. Use for preventing light pollution during working           process.



8. Start control panel system: Manual/Automatic button platform with portable structure. Convenient for         operation.



9. Safety protective fence system: for preventing people from getting close to the welding position and           avoid accidents. Safety production.





COMPETITIVE ADVANTAGE

1. Professional

Over 20 years of experience in wire mesh industry and export more than 50 countries. Hwashi is the real professional manufacture.



2. Product Quality

The quality of products is the key of enterprise survival. Hwashi is ISO9001:2000 certificated manufacture.



3. Reasonable Price

We’ll exact control each producing process to reduce cost for our customers.

After clients receive the quotation, we’ll show you the rationality of the price and the difference between our products and other supplier’s products.



4. Delivery Time

The customer’s need is delivery on time, rather an excuse.

We’ll make a production plan before producing, and the sales will regularly inform the production schedule and process to the customers.



5. Communication

English is the basic and other languages can be understood.

All customers’ e-mail will be replied within 2 hours at working hours and must be replied within 12 hours at non-working hours.



6. Customized

Personalized, professional service: we can provide different programs according to customers’ requirement, thus make customers choose the best and most appropriate one.



7. Technical Assistance

24 hours technical support by email. Our professional team is always here willing to be your technical consultant.



Welcome your inquiry, just tell me what you need, and I will do the best!

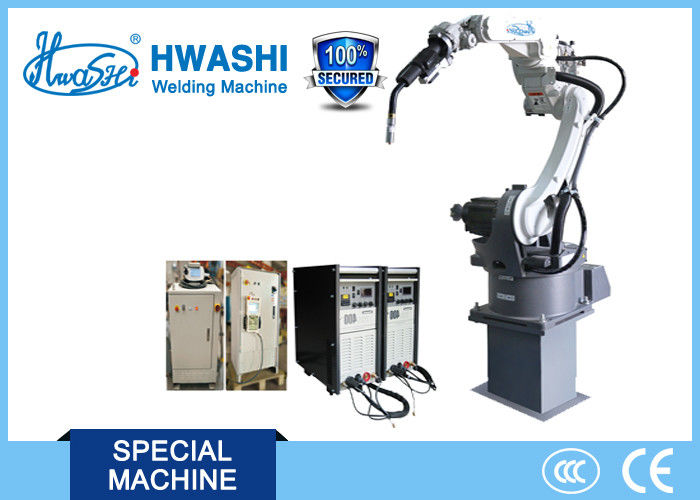

          Professional 6 Axis Indstrial CNC Welding Robot With Servo Motor 0
