Name: Hwashi SQ-MF25K Gantry Wire Mesh Welder with Auto Wire Layout
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-150K*2
Price: 30,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Las Wire Mesh >

Hwashi SQ-MF25K Gantry Wire Mesh Welder with Auto Wire Layout

Hwashi SQ-MF25K gantry wire mesh welder

auto wire layout mesh welding machine

wire mesh welder with gantry system

Tempat asal:

Cina

Nama merek:

HWASHI

Sertifikasi:

Nomor model:

WL-SQ-150K*2

Hubungi kami

Permintaan Penawaran

Rincian Produk

Nama Produk:

Hwashi Otomatis Multiple Head Wire Mesh Spot Welding Machine untuk rak dapur oven

Dimensi (l*w*h):

Menurut produk Anda

Berat:

Menurut produk Anda

Komponen Inti:

PLC, Mesin, Motor

Jaminan:

1 Tahun

Sumber Daya Pengelasan:

AC / MF DC

Daya masukan:

3Φ4W 380V±10%, 50/60Hz

Kapasitas Daya MFDC:

6× 25KVA (total 150KVA)

frekuensi inverter:

1000Hz

Akurasi kontrol saat ini:

±1%

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 set

Harga

Dapat dinegosiasikan

Kemasan rincian

Paket kayu yang layak atau film PVC untuk FCL

Waktu pengiriman

30 - 45 hari kerja setelah menerima pembayaran Anda

Syarat-syarat pembayaran

L/C,T/T

Menyediakan kemampuan

50 Set per Bulan

Produk-produk terkait

video

Mesin Pengelasan Wire Mesh Industri dengan Lebar Pengelasan Efektif 1200mm dan Panjang 3000mm Featuring Three-Phase MF DC Power Source for Automated Stable Welding Output

Dapatkan Harga Terbaik

video

Mesin Pengelasan Wire Mesh Otomatis dengan 200mm / S Kecepatan Wiring Maksimum dan 2D Wire Handle Bending dengan Garansi 1 Tahun

Dapatkan Harga Terbaik

video

Mesin Pengelasan Wire Mesh dengan Tiga-Fase MF DC Power Supply 1200mm Efektif Lebar Pengelasan dan 3000mm Panjang

Dapatkan Harga Terbaik

video

Mesin Pengelasan Wire Mesh dengan Tiga-Fase MF DC Power Supply 1200mm Efektif Lebar Pengelasan dan 3000mm Panjang

Dapatkan Harga Terbaik

Hubungi kami

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Hubungi sekarang

Deskripsi Produk

Hwashi SQ-MF25K Gantry Wire Mesh Welder with Auto Wire Layout

Auto Wire. One-Touch Welding. 4* Output.

Introducing the Hwashi SQ-MF25K Automatic Wire Mesh Gantry Welder — a revolutionary production system featuring automatic wire layout, multi-point wiring, and fully automated feeding for large-scale mesh fabrication. Engineered for supermarket shopping carts, storage cages, pet crates, warehouse rack shelving, and guardrail mesh panels. This machine transforms manual-intensive mesh production into a streamlined, high-efficiency operation.

Product Description

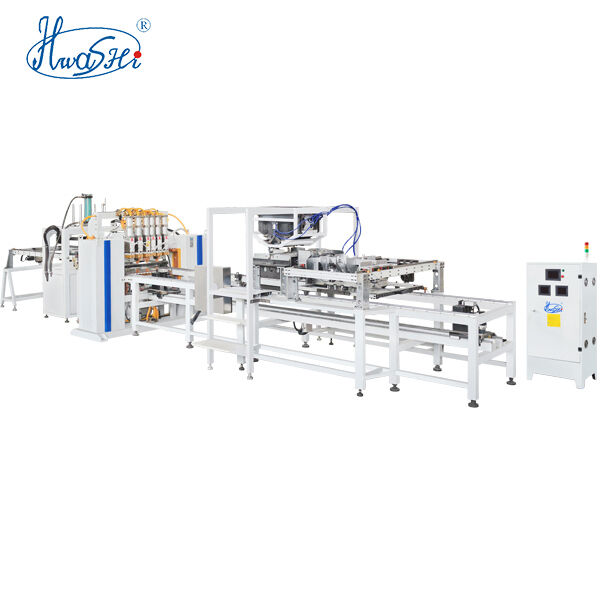

The SQ-MF25K is a fully automated gantry wire mesh welding system designed for high-volume production of standard and custom-shaped large mesh panels. The system combines five independent wire layout mechanisms with six MFDC inverter power supplies to deliver unprecedented welding speed and consistency.

What makes the SQ-MF25K a game-changer is its complete automation workflow — automatic wire arrangement, automatic feeding, automatic welding, and automatic panel discharge. The transformation speaks for itself: before automation, 8 workers in 2 shifts produced 800 pieces/day; after SQ-MF25K installation, just 2 operators oversee 3,200 pieces/day — a 4* efficiency boost with 99.5% pass rate and an 8-month ROI.

This is the ultimate solution for mesh manufacturers seeking to eliminate labor bottlenecks, reduce production costs, and scale output without expanding workforce.

Product Details

Working Principle

The SQ-MF25K combines four core subsystems working in perfect synchronization:

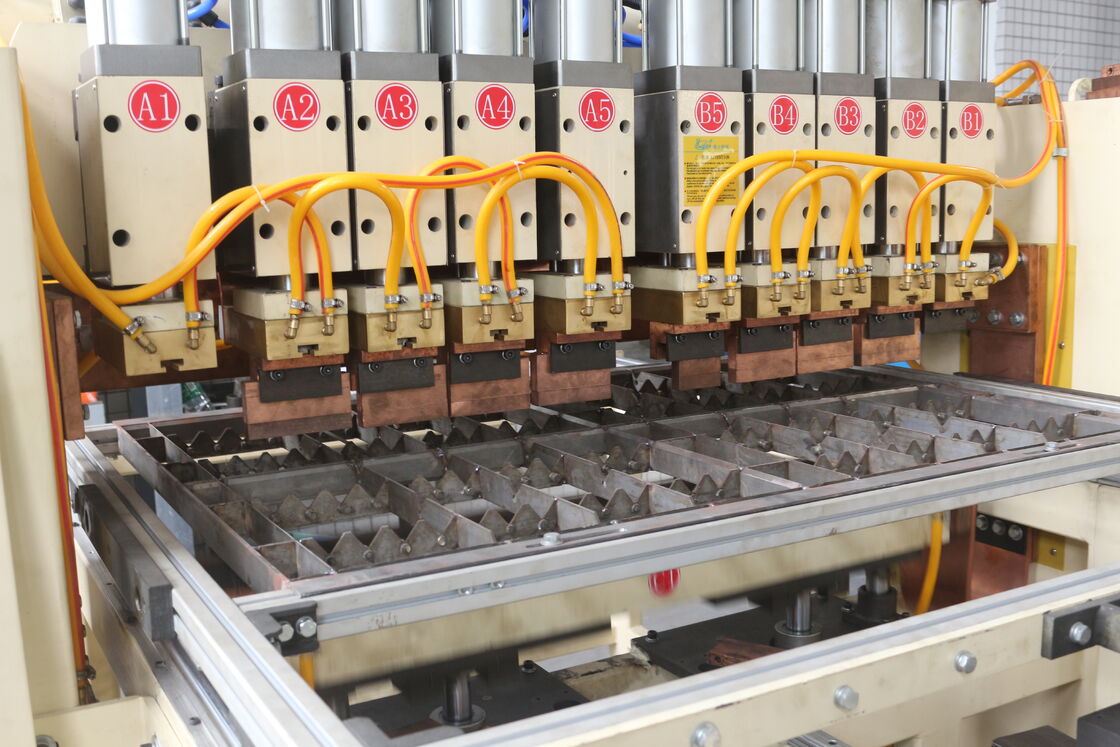

Gantry Frame Structure — Provides rigid support for multi-head welding array and wire layout mechanisms
5-Set Automatic Wire Layout System — Precisely positions longitudinal and transverse wires before welding
6-Set MFDC Inverter Power Supplies — Delivers medium-frequency direct current to multiple welding heads simultaneously
Automatic Feeding & Discharge System — Moves workpieces through the welding cycle without manual intervention

The HMI control panel allows operators to configure wire spacing, mesh dimensions, and welding patterns for different product specifications.

Key Features

Feature	Specification
Automation Level	Fully automatic — wire layout + feeding + welding
Layout Mechanisms	5 independent wire arrangement units
Power Supplies	6* MFDC inverter units (25KVA each)
Feeding System	Automatic servo-driven feeding & discharge
Weld Speed	Up to 3,200 pieces/day (vs. 800 manual)
Operator Requirement	2 operators per shift (vs. 8 manual)
Pass Rate	99.5% first-pass yield
ROI Period	8 months
Duty Cycle	≥50% continuous production

Technical Specifications

Parameter	Specification
Model	SQ-MF25K
Input Power	3Φ4W 380V±10%, 50/60Hz
MFDC Power Capacity	6* 25KVA (150KVA total)
Inverter Frequency	1000Hz
Current Control Accuracy	±1%
Duty Cycle	≥50%
Repeat Positioning Accuracy	≤±0.15mm
Cooling System	Water-cooled
Certifications	ISO 9001, CE
