Hwashi 7-Axis CNC Double Heads Sheet Metal Spot Welding Machine with Medium Frequency Inverter Power Supply

7-Axis CNC Control Sheet Metal Spot Welding Machine

Double Heads Welding Automatic Sheet Metal Welder

Medium Frequency Inverter Power Supply CNC Sheet Metal Welder

Tempat asal:

Cina

Nama merek:

HWASHI

Sertifikasi:

CE/CCC/ISO

Hubungi kami

Permintaan Penawaran

Rincian Produk

Nama Produk:

Hwashi CNC Seven 7axis Double Heads Sheet Metal Spot Weldinq Mesin, Otomatis Sheet Metalwelder untuk

Jaminan:

12 bulan

Kondisi:

Baru

Kehidupan pelayanan:

8-10 tahun

Daya (kW):

160KVAX2

Frekuensi:

1000Hz

Ketebalan max:

2+2mm

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 set

Harga

Dapat dinegosiasikan

Kemasan rincian

Paket kayu yang layak di laut

Waktu pengiriman

7-30 hari kerja setelah menerima pembayaran Anda

Syarat-syarat pembayaran

L/C,T/T

Menyediakan kemampuan

50 Set per Bulan

Produk-produk terkait

video

Mesin Las Titik Otomatis HWASHI dengan Arus Maksimal 34000A Lebar yang Dapat Disesuaikan 1200mm dan Kontrol Layar Sentuh Digital untuk Lembaran Logam

Dapatkan Harga Terbaik

video

Hwashi cnc tujuh 7axis kepala ganda lembaran logam las mesin pengelasan spot otomatis untuk squatrack

Dapatkan Harga Terbaik

video

Hwashi Security Stainless Sheet Door Door Multi-Point Otomatis Tipe Seluler Mesin pengelasan spot, las logam lembaran

Dapatkan Harga Terbaik

video

Hwashi terbaru Mesin Pengelasan Inverter Tipe Gantry Logam Lapisan Pintu Otomatis

Dapatkan Harga Terbaik

Hubungi kami

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Hubungi sekarang

Deskripsi Produk

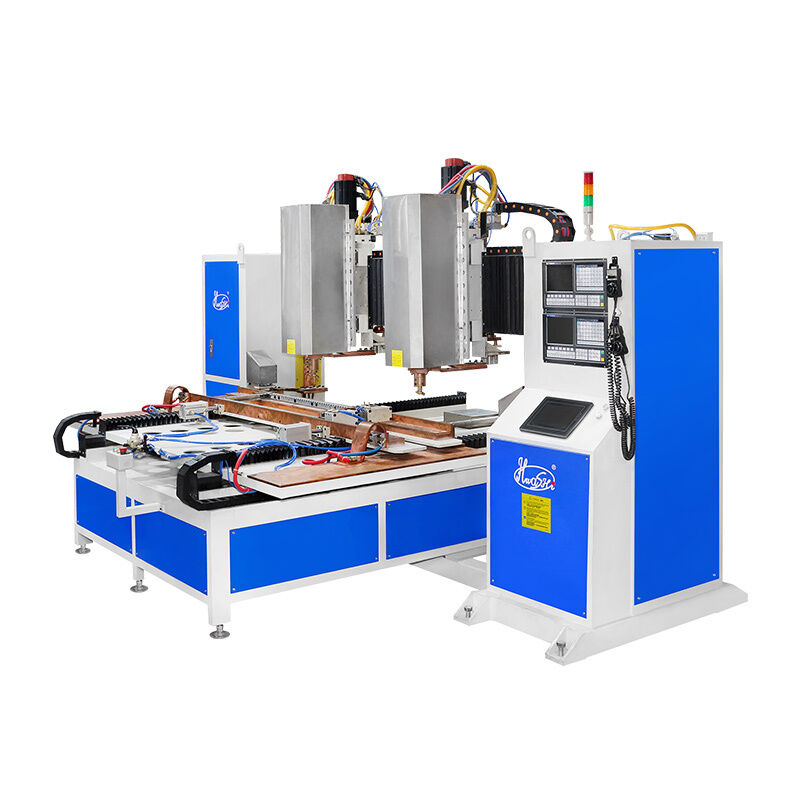

Hwashi CNC Seven 7-Axis Double Heads Sheet Metal Spot Welding Machine

This automatic sheet metal welder for squat racks is custom-engineered to meet your specific welding requirements and product specifications.

Advanced CNC Control System

The machine features two independent welding mechanisms controlled by a sophisticated CNC servo system. This includes X-direction mobile welding and Y-direction table movement, enabling precise welding at various positions. The welding mechanisms also provide Z-direction lifting and A-direction rotation capabilities, with the CNC system coordinating all seven axes for optimal positioning and welding performance.

Key Features & Benefits

Medium frequency inverter power supply for consistent welding performance
Fully automated welding production with programmed position control
Operator only required for product loading and unloading
Significantly improved product quality and production efficiency
Reduced production costs and elimination of manual welding inconsistencies
High automation degree with reliable, repeatable results

Industrial Applications

Primarily used for welding low-carbon steel, low-alloy steel, stainless steel, coated steel, plate and round steel that cannot be efficiently welded by standard fixed welders. Widely applied across multiple industries including automotive manufacturing, civil sheet metal fabrication, security doors, cabinet production, and household appliances.

Customized Engineering Solutions

We provide comprehensive customized services tailored to your specific welding requirements. Our engineering team will collaborate with you to analyze your samples or technical drawings and develop optimal technical proposals for your application.

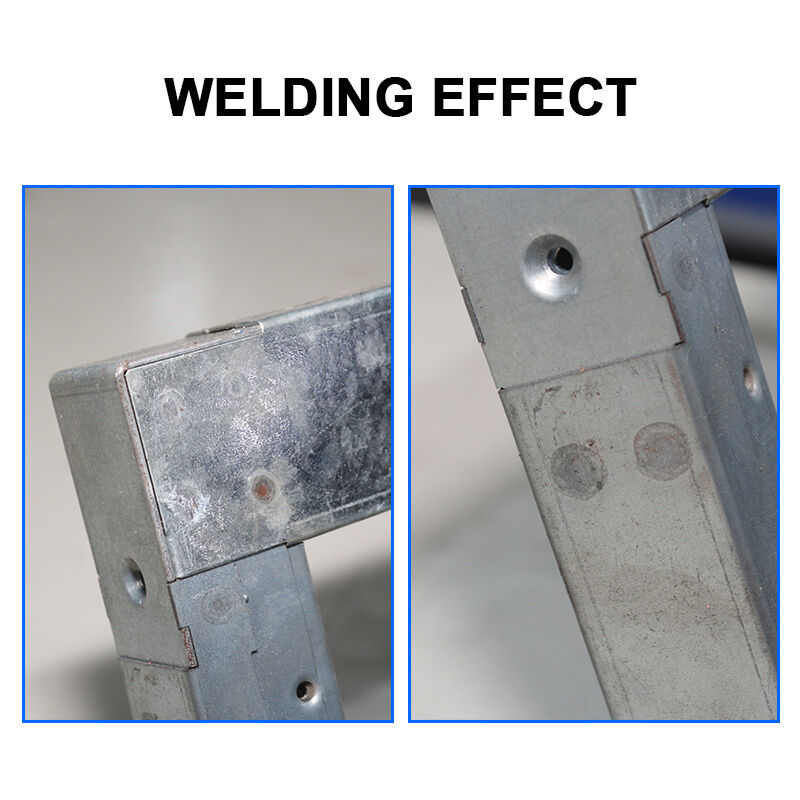

Welding Quality & Performance

Produces firm solder joints with consistent welding effects and reliable performance across all applications.

Technical Specifications

Item	Parameter
Rated Power	120KVA * 2
Duty Cycle	50%
Frequency	1000Hz
Effective Welding Length	1200mm
Effective Welding Width	2200mm
Welding Driving Power	Servo System
Maximum Moving Speed	500mm/s
Machine Dimension	L3800mm * W2600mm
Rated Air Pressure	0.6MPa
Water Temperature	10-25°C
