HWASHI Automatic Gantry Style Wire Mesh Welding Machine with 10 Welding Heads 40000A Output Current and Automatic Wire Filling System

10 Welding Heads Wire Mesh Welding Machine

40000A Output Current Automatic Spot Welding Machine

Automatic Wire Filling System Gantry Style Welding Machine

Tempat asal:

Cina

Nama merek:

Hwashi

Sertifikasi:

Hubungi kami

Permintaan Penawaran

Rincian Produk

Suhu pengelasan:

Tinggi

Penggunaan:

Pembuatan Kontainer Curah Menengah

masukan arus:

300A

Standar:

CE/CCC/ISO

Sistem Pendingin:

Pendinginan Air

Kecepatan las:

10-15 Kandang Per Jam

Arus Keluaran:

40000A

Kualitas las:

Tinggi

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

Harga

Dapat dinegosiasikan

Kemasan rincian

Paket kayu yang layak di laut

Waktu pengiriman

7-30 hari kerja setelah menerima pembayaran Anda

Syarat-syarat pembayaran

T/T,L/C

Menyediakan kemampuan

10 set/bulan

Produk-produk terkait

video

High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine and Welding and Bending Machine Mesin pengelasan dan lentur mesin pengelasan dan lentur mesin pengelasan dan lentur mesin pengelasan

Dapatkan Harga Terbaik

video

Mesin Pengelasan Wire Mesh Otomatis dengan 200mm / S Kecepatan Wiring Maksimum, 2D Wire Handle Bending, dan Garansi 1 Tahun

Dapatkan Harga Terbaik

video

Mesin Las Kawat Jaring Otomatis dengan Catu Daya MF DC Tiga Fasa Lebar Pengelasan 1200mm dan Panjang 3000mm

Dapatkan Harga Terbaik

video

Mesin Pengelasan Wire Mesh Otomatis dengan 200mm / S Kecepatan Wiring Maksimum 2D Wire Handle Bending dan Garansi 1 Tahun

Dapatkan Harga Terbaik

Hubungi kami

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Hubungi sekarang

Deskripsi Produk

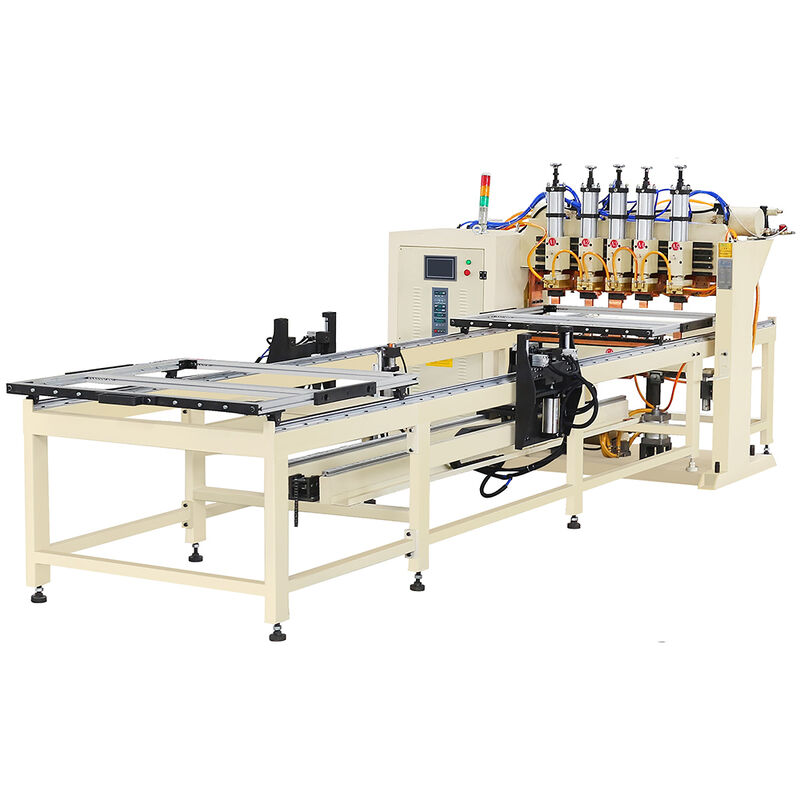

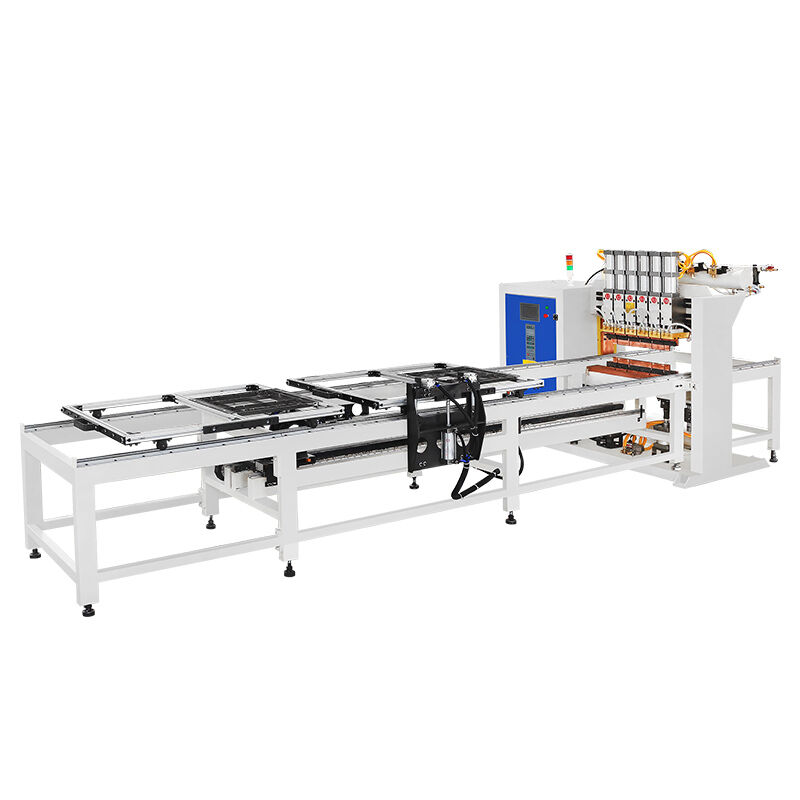

HWASHI Automatic Gantry Style Multi Head Spot Row Welding Machine

Designed for wire mesh applications with 2-8mm wire diameter, this H-type multi-head automatic welding machine features ten electrodes and comprehensive automation systems for efficient refrigerator wire shelf production.

Machine Overview

The HWASHI welding equipment is an H-type wire mesh multi-head automatic welding machine equipped with ten electrodes and automatic feeding system. This fully automated solution automatically drops wire to the fixture, executes feeding and welding operations, and features one-way double-layer feeding that moves forward and backward automatically with customizable welding distance settings.

Welding Method: One-way double-layer automatic stepping feeding with 10 welding heads
Effective Welding Width: 1200mm
Effective Welding Length: 1000mm
Ideal for batch production of wire mesh with multiple-point welding

System Components

Complete system includes main machine body, welding transformer, pneumatic drive device, upper and lower electrodes, automatic wire filling device, electrical control system, cooling system, and PLC operation control system.

Intelligent Welding Control System

Automated welding operation by inputting coordinate data of welding positions, welding current, and other parameters for precise control.

Custom Welding Heads and Fixtures

Precision processing and design according to specific wire shelf product drawings with customization options available.

Automatic Wire Filling System

Simply place precut straight wires into the hopper, and the system automatically fills wires into the fixture, significantly increasing working efficiency and reducing labor requirements.

Automatic Double-layer Feeder

Simultaneous operation capability: while one fixture undergoes welding, the wire filling system loads wires onto the other fixture. Automatic fixture exchange upon welding completion maximizes production efficiency.
