Name: Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-150K*2
Price: 375,005.00 USD
Availability: InStock

Rumah > Produk > Mesin Las IBC >

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

Fully Automatic IBC Tube Pressing and Forming Machine

Hydraulic Pressing IBC Frame Tube Forming Machine

Pipe End Shrinking IBC Tube Forming Equipment

Tempat asal:

Cina

Nama merek:

HWASHI

Sertifikasi:

Nomor model:

WL-SQ-150K*2

Hubungi kami

Permintaan Penawaran

Rincian Produk

Nama Produk:

Mesin Pengepres dan Pembentuk Tabung Panjang Otomatis Hwahsi untuk Lini Produksi Pembuatan Rangka Ba

Sistem kendali:

PLC

Sedang mengemas:

pengepakan kayu

Spesifikasi:

CCC

Jaminan:

1 Tahun

Sumber Daya Pengelasan:

AC / MF DC

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 set

Harga

Dapat dinegosiasikan

Kemasan rincian

Paket kayu yang layak atau film PVC untuk FCL

Waktu pengiriman

30 - 45 hari kerja setelah menerima pembayaran Anda

Syarat-syarat pembayaran

L/C,T/T

Menyediakan kemampuan

50 Set per Bulan

Produk-produk terkait

video

Hwahsi Fully Automatic IBC Tube Pressing and Forming Machine with Hydraulic Pressing and Pipe End Shrinking for Stainless Steel Frame

Dapatkan Harga Terbaik

video

Hwahsi Automatic IBC Tube Forming Machine with PLC Control and Hydraulic Pressing for Full Automation

Dapatkan Harga Terbaik

video

Lini Produksi Rangka Kandang IBC Grid Otomatis Penuh dengan Pengujian Kebocoran dan Efisiensi Pengelasan 50 detik/pc

Dapatkan Harga Terbaik

video

Mesin Produksi Otomatis IBC Cage dengan Waktu Siklus 60 Detik Per Kandang Bersertifikat ISO9001 dan Berat 2000kg

Dapatkan Harga Terbaik

Hubungi kami

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Hubungi sekarang

Deskripsi Produk

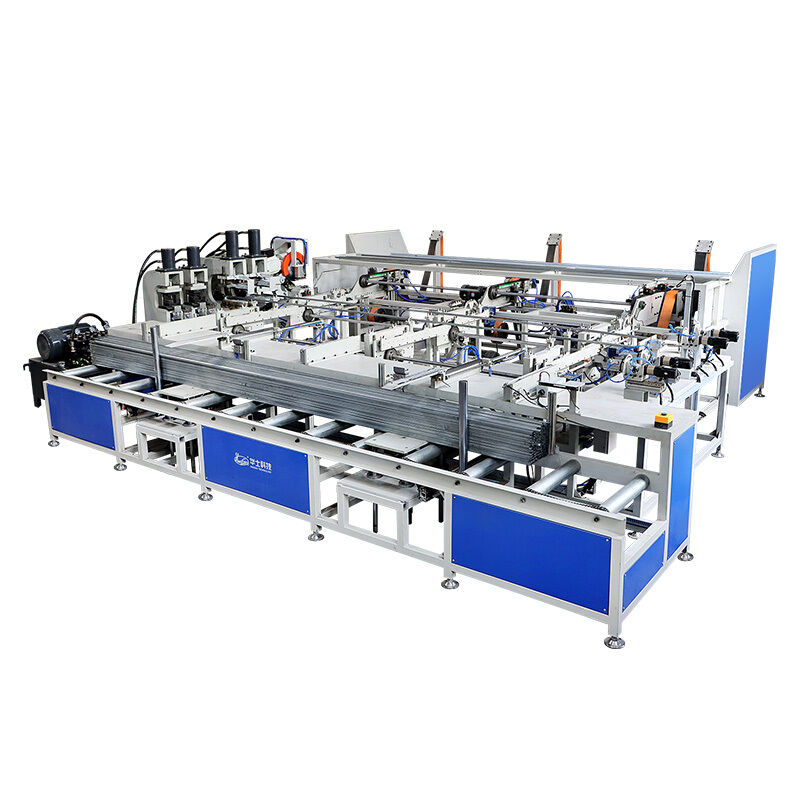

Hwahsi Automatic Long Tube Pressing And Forming Machine For IBC Stainless Steel Frame

The Hwahsi Automatic Long Tube Pressing and Forming Machine is a specialized custom solution designed for IBC tube processing in stainless steel frame manufacturing production lines. This advanced equipment enables fully automated pipe feeding, pipe end shrinking, hydraulic pressing, and automatic unloading processes without requiring operator intervention.

Key Features & Benefits

Fully Automatic Operation: Seamless automated processing eliminates the need for human intervention
Pipe End Shrinking Capability: Ensures precision and consistency in IBC tube shaping to meet quality standards
Efficient Hydraulic Pressing: Advanced hydraulic system enhances tube formation efficiency and final product quality
Automatic Unloading: Integrated unloading process streamlines production workflow and minimizes downtime
Manpower Savings: Eliminates operator requirements, significantly reducing labor costs
Production Rate Enhancement: Advanced automation delivers substantial increases in production output within shorter timeframes

Operation Process

Finished Product

Processing Workflow:

Round tubes are manually loaded into the hopper before processing. The automated feeder then transports pipes to the hydraulic pressing station. The mechanical arm picks up two pipes simultaneously and positions them for hydraulic pressing and tube end shrinking. After pressing completion, finished tubes are automatically unloaded onto the conveyor system, which transfers the final materials into the collection trolley.

Technical Specifications

Pipe Diameter	Round pipe 18mm (customizable)
Pressing Source	Hydraulic
Pressing Mark Number	20
Cutting Function	Yes
Each Time Processing Number	2 pieces
Efficiency	12-15 seconds per 2 pieces

Advanced Manufacturing Solution: The IBC Long Tube Automatic Pressing and Forming Machine represents cutting-edge technology in IBC tube processing, providing manufacturers with a reliable, high-speed, and labor-saving solution to optimize production capabilities and enhance operational efficiency.
