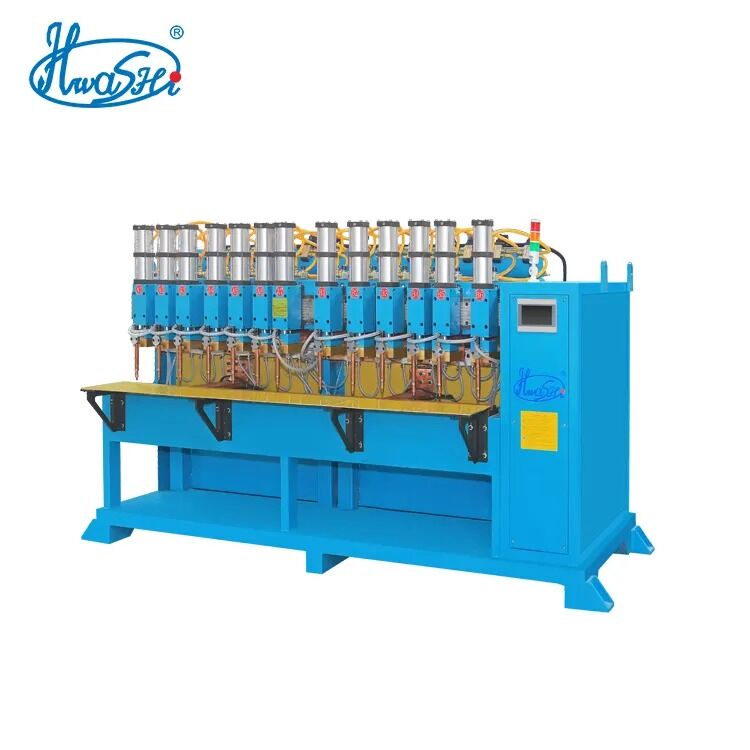

Hwashi Door Panel Multi Head Spot Welding Machine with 10 to 20 Welding Heads and 2000x300mm Platform with Touch Panel System

10 to 20 Welding Heads Spot Welding Machine

2000x300mm Welding Platform Multi Head Welder

Touch Panel System Door Panel Welding Machine

Tempat asal:

Cina

Nama merek:

HWASHI

Sertifikasi:

CE/CCC/ISO

Hubungi kami

Permintaan Penawaran

Rincian Produk

Jaminan:

12 bulan

Kondisi:

Baru

kehidupan pelayanan:

8-10 tahun

berat (kg):

600kg

Jarak platform:

260

Aplikasi:

Pengelasan untuk wastafel dapur

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

US$9,800.00

Kemasan rincian

Paket kayu yang layak di laut

Waktu pengiriman

7-30 hari kerja setelah menerima pembayaran Anda

Syarat-syarat pembayaran

L/C,T/T

Menyediakan kemampuan

50 set per bulan

Produk-produk terkait

video

Hwashi Automatic Multi Head Spot Welding Machine with Customizable Welding Head Distance and Touch Panel System for Door Panels

Dapatkan Harga Terbaik

video

Mesin pengelasan titik meja dengan pengontrol layar sentuh cerdas untuk lenturan presisi dan ketebalan pengelasan 3,0+3,0 MM

Dapatkan Harga Terbaik

video

Mesin pengelasan titik meja dengan pengontrol layar sentuh cerdas untuk ketebalan pengelasan 3,0 + 3,0 MM dan kompatibilitas lentur presisi

Dapatkan Harga Terbaik

video

Mesin pengelasan titik meja dengan pengontrol layar sentuh cerdas untuk lenturan presisi dan ketebalan pengelasan 3,0+3,0 MM

Dapatkan Harga Terbaik

Hubungi kami

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Hubungi sekarang

Deskripsi Produk

Hwashi Door Panel Multi Head Spot Welding Machine with 10 to 20 Welding Heads and 2000x300mm Platform with Touch Panel System

The HWASHI Door Panel Multi Head Spot Welding Machine features multiple welding heads with automatic operation, offering flexibility to weld simultaneously or sequentially. This industrial-grade equipment is specifically designed for door panel and sheet metal multi-spot welding applications.

Technical Specifications

Effective welding width: 1000mm to 2000mm
Effective welding length: 300mm (customizable)
Material thickness range: 0.4mm to 1.5mm

Working Process

Manually position the workpiece on the table
Press start button for automatic welding of one line of spots
Manually move product to next line and repeat process
Cycle continues for complete welding operation

Key Advantages

Precision welding quality
No special equipment requirements
Simultaneous multi-head welding capability
Optimal working area accessibility
Enhanced production flexibility
Reduced labor costs

Product Features

Flexible Configuration: Adjust welding head distance according to drawing specifications by loosening cylinder bolts and moving laterally
Reduced Setup Time: Minimizes electrode adjustment and workbench setup requirements compared to conventional stationary welders
Easy Parameter Setting: Intuitive touch panel system for setting welding conditions with programmable parameters for different materials and thicknesses
Ergonomic Operation: Automatic pressurization eliminates manual workpiece holding, reducing operator fatigue and increasing productivity

Technical Specifications Table

S.N	Items	WL-SF-MF160K	WL-SF-MF120K	WL-SF-MF100K
1	Input Voltage	380V, 3-Phase	380V, 3-Phase	380V, 3-Phase
2	Input Power	160KVA	120KVA	100KVA
3	Max. Welding Current	32000A	30000A	28000A
4	Max. Electrode Force	2.2KN	2.2KN	2.2KN
5	Welding Capacity	3+3mm	2+2mm	1+1mm
6	Welding Schedule	32 Kinds
7	Effective Size Of Welding Platform	2000x300mm (customized)
8	Welding Head Numbers	10 to 20 (as per your drawings)
9	Distance Between Electrodes	100-300mm

Industrial Application Benefits

This multi-head spot welding system delivers exceptional efficiency for door panel manufacturing and sheet metal fabrication, combining precision welding with operational flexibility and reduced labor requirements.
