Hwashi Automatic Multi Head Spot Welding Machine with Customizable Welding Head Distance and Touch Panel System for Door Panels

Automatic Welding Multi Head Spot Welding Machine

Customizable Welding Head Distance Door Panel Welding Machine

Touch Panel System Stainless Steel Welding Machine

Tempat asal:

Cina

Nama merek:

HWASHI

Sertifikasi:

CE/CCC/ISO

Hubungi kami

Permintaan Penawaran

Rincian Produk

Jaminan:

12 bulan

Kondisi:

Baru

kehidupan pelayanan:

8-10 tahun

berat (kg):

600kg

Jarak platform:

260

Aplikasi:

Pengelasan untuk wastafel dapur

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 Set

Harga

US$9,800.00

Kemasan rincian

Paket kayu yang layak di laut

Waktu pengiriman

7-30 hari kerja setelah menerima pembayaran Anda

Syarat-syarat pembayaran

L/C,T/T

Menyediakan kemampuan

50 set per bulan

Produk-produk terkait

video

Hwashi Automatic Multi Head Spot Welding Machine with Customizable Welding Head Distance and Touch Panel System for Door Panels

Dapatkan Harga Terbaik

video

Mesin pengelasan titik meja dengan pengontrol layar sentuh cerdas untuk lenturan presisi dan ketebalan pengelasan 3,0+3,0 MM

Dapatkan Harga Terbaik

video

Mesin pengelasan titik meja dengan pengontrol layar sentuh cerdas untuk ketebalan pengelasan 3,0 + 3,0 MM dan kompatibilitas lentur presisi

Dapatkan Harga Terbaik

video

Mesin pengelasan titik meja dengan pengontrol layar sentuh cerdas untuk lenturan presisi dan ketebalan pengelasan 3,0+3,0 MM

Dapatkan Harga Terbaik

Hubungi kami

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Hubungi sekarang

Deskripsi Produk

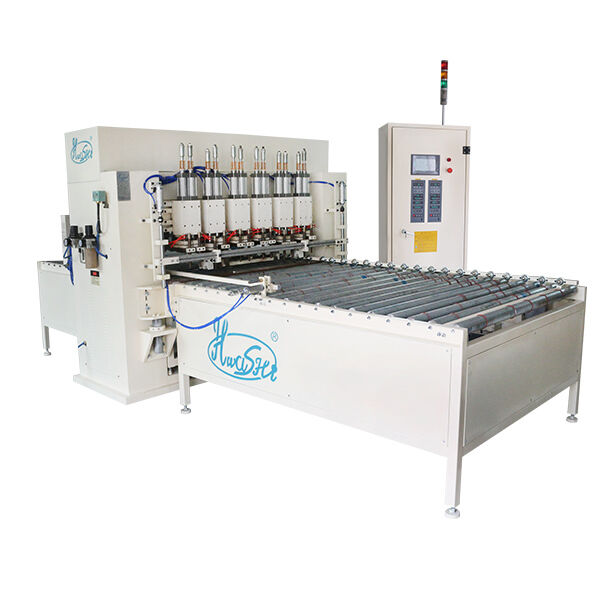

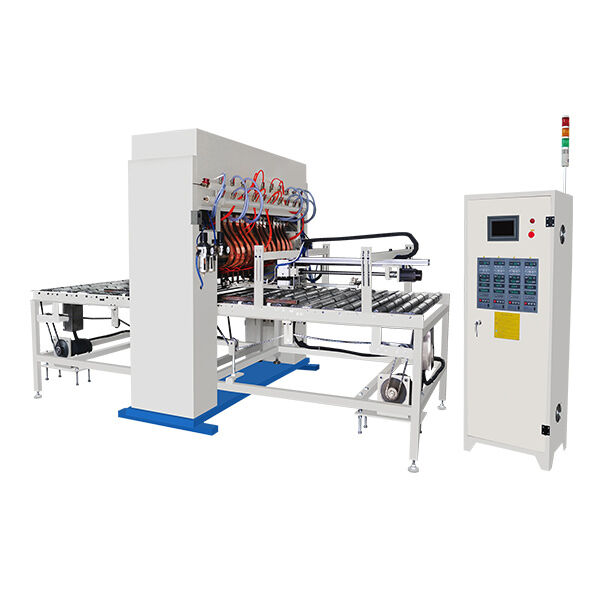

Hwashi Door Panel Multi Head Spot Welding Machine

Product Overview

The HWASHI Door Panel Multi Head Spot Welding Machine features multiple welding heads with automatic welding capabilities. This versatile system allows for simultaneous multi-head welding or sequential head welding operations, making it ideal for door panel and sheet metal multi-spot welding applications.

Technical Specifications

Model	WL-SF-MF160K	WL-SF-MF120K	WL-SF-MF100K
Input Voltage	380V, 3-Phase	380V, 3-Phase	380V, 3-Phase
Input Power	160KVA	120KVA	100KVA
Max. Welding Current	32000A	30000A	28000A
Max. Electrode Force	2.2KN	2.2KN	2.2KN
Welding Capacity	3+3mm	2+2mm	1+1mm
Welding Schedule	32 Kinds
Effective Welding Platform Size	2000x300mm (customized)
Welding Head Numbers	10 to 20 (as per your drawings)
Distance Between Electrodes	100-300mm

Material Compatibility: 0.4mm to 1.5mm thickness
Effective Welding Width: 1000mm to 2000mm
Effective Welding Length: 300mm (customizable)

Working Process

Manually place the workpiece onto the welding table
Press the start button to initiate automatic welding for one line of spots
After completing one line, manually reposition the product to the next line
Press start button again and repeat the cycle

Key Advantages

Precision refined welding quality
No special equipment requirements
Simultaneous multi-head welding capability
Optimal working area accessibility
Enhanced production flexibility
Significant labor cost reduction

Product Features

Flexible Configuration: Adjust welding head distance according to your specifications by simply loosening cylinder bolts and repositioning
Reduced Setup Time: Minimizes ancillary work like electrode adjustment and workbench setup compared to conventional stationary welders
Easy Parameter Setting: Intuitive touch panel system for setting welding conditions with programmable parameters for different materials and thicknesses
Ergonomic Operation: No need to hold workpieces during welding; automatic pressurization reduces operator physical burden and increases productivity

Table Spot Welding Machine Features

Labor Saving Design: Single-person operation without auxiliary personnel; freely moving guns provide easy access to desired welding points
Efficient Setup: Significantly reduces preparation time for electrode adjustment and workbench configuration
Versatile Welding: Capable of welding nuts and screws by changing electrode tips according to type and size requirements
