Name: Precision Bending Made Easy with Stainless Steel Welding Machine Industrial Grade Performance
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SF-50/75/100K
Price: 25.00 USD
Availability: InStock

Rumah > Produk > Mesin Las stainless steel >

Precision Bending Made Easy with Stainless Steel Welding Machine Industrial Grade Performance

Tempat asal:

CINA

Nama merek:

hwashi

Sertifikasi:

CE/CCC/ISO

Nomor model:

WL-SF-50/75/100K

Hubungi kami

Permintaan Penawaran

Rincian Produk

Model:

WL-SF-50/75/100K

Daya Masukan (V/φ):

380/3

Nilai Daya (KVA):

50/75/100

Materi yang berlaku:

Baja tahan karat, baja karbon, aluminium, logam

Gaya Elektroda (KG):

250-400

Ketebalan Jahitan (MM):

3.0+3.0

Jaminan:

1 tahun

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 set

Harga

Dapat dinegosiasikan

Kemasan rincian

Paket kayu yang layak di laut

Waktu pengiriman

60 hari kerja setelah menerima pembayaran Anda

Syarat-syarat pembayaran

L/c, t/t

Menyediakan kemampuan

50 set per bulan

Produk-produk terkait

video

Mesin Las Titik Meja: Hilangkan Cacat Las dalam Tugas Pembengkokan Presisi

Dapatkan Harga Terbaik

video

Peralatan Pembengkok Lengan Ayun Baja Tahan Karat Premium Presisi Bertemu Daya Tahan

Dapatkan Harga Terbaik

video

Mesin Las Spot Meja Lengan Engkol Tipe C yang Tahan Lama Untuk Tugas Pembengkokan Presisi

Dapatkan Harga Terbaik

video

Mesin pengelasan baja tahan karat untuk aplikasi penguatan struktural tugas berat

Dapatkan Harga Terbaik

Hubungi kami

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Hubungi sekarang

Deskripsi Produk

Precision Bending Made Easy with Stainless Steel Welding Machine Industrial Grade Performance

The Sheet Metal Reinforcement Welding Machine is a high-performance industrial equipment designed for seamless welding of metal sheets (e.g., steel, aluminum, stainless steel) in structural reinforcement applications. Combining advanced arc welding technology with automated precision, it ensures robust joint strength, minimal deformation, and superior durability for heavy-duty fabrication.

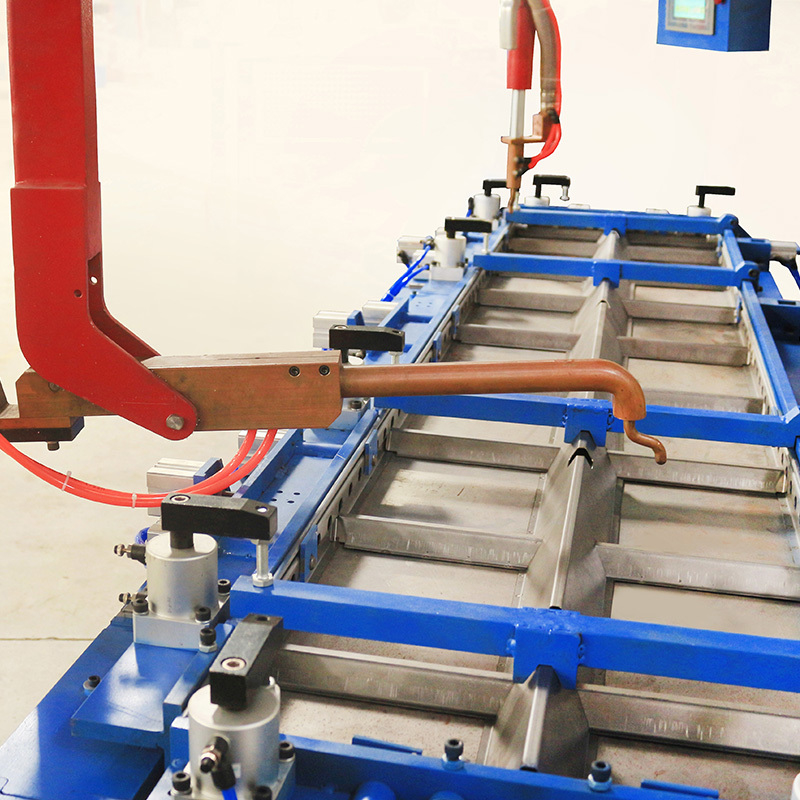

Intelligent welding control system Intelligent Touch Screen Controller Input and read welding parameters. The welding conditions can be easily set using the touch panel system.You can save the different welding parameters for different material and thickness. So you can recall the welding program easily	Welding platform Flat big copper table for welding various sheet metal door panels. If the workpiece can be placed on the table-type electrode, it can be welded without the use of auxiliary personnel. The welding gun move freely, allowing easy access to the desired welding point by one person.

Standard Welding Electrode Welding can be done efficiently by changing the electrode tip according to the type and size of product. It can also weld nut, or screws, etc.	Easy Set up and Operation. Comfortable working position: There is no need to hold the workpiece during welding; Pressurization is also automatic, greatly reducing the physical burden on the operator.

Designed specifically to address the critical challenges of weld quality in precision bending applications, our Table Spot Welding Machine redefines reliability and accuracy for metal fabrication professionals. Whether you’re working on thin-gauge sheets, complex bent components, or high-precision parts for industries like automotive, electronics, or medical devices, this machine delivers consistent, flawless welds that eliminate common imperfections—such as spatter, uneven fusion, cold joints, or distortion—that often plague standard welding equipment in bending tasks.

Core Advantages for Precision Bending Scenarios

Imperfection-Free Weld Formation: Equipped with advanced current control technology and a high-precision electrode positioning system, the machine ensures uniform heat distribution across the weld spot. This minimizes thermal stress on bent workpieces, preventing warping or deformation while achieving full fusion between metal layers—critical for maintaining the dimensional accuracy of pre-bent components.

Adaptive Bending Compatibility: Its compact tabletop design and adjustable clamping force accommodate various bent part geometries, from simple angles to complex 3D-formed structures. The flexible electrode arms can reach tight spots on bent edges, ensuring secure welds even in hard-to-access areas without compromising the workpiece’s pre-set bending angles.

Consistency & Repeatability: Integrated with a digital control panel, operators can store and recall custom welding parameters (current, pressure, weld time) for specific bending tasks. This eliminates human error and ensures every weld meets the same high standard, ideal for batch production of precision parts.

Damage Prevention for Thin Materials: For thin-gauge metals commonly used in precision bending (e.g., aluminum, stainless steel, copper), the machine’s low-spatter welding process and soft-clamping mechanism protect the workpiece surface from scratches or indentations—preserving both aesthetic and functional quality.

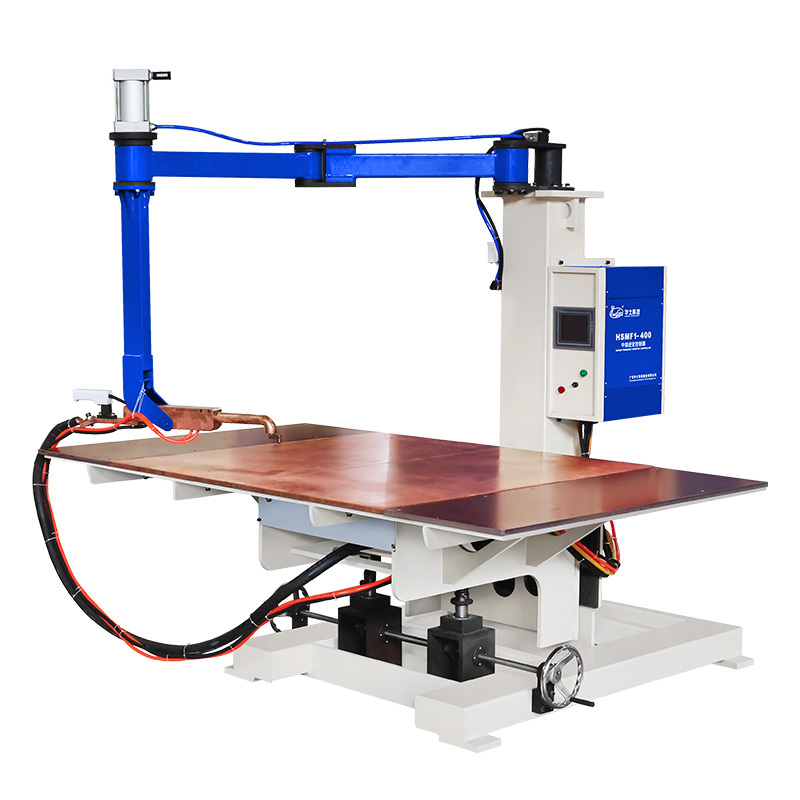

Table Spot Welding Machine
1. The movement patterns of crank arm mobile flat plate spot welder can be chosen as manual or CNC automatic mobile type.
2. The structure of manual mobile method is simple. It is convenient, flexible to move manually and the locating of welding spot is simple. Good applicability to complicated products.
3. Automatic mobile method adopts the coding servo motor, which is equipped with precision-machined good quality of slide rail, ball screw and automatic testing system in order to complete the electrode automatic movement.
4. Automatic device adopts the axis X, Y of mobile working table, utilizing the PLC to store setting mobile program. Simple and convenient setting.
5. Adopt direct single-point welding method. The lower electrode is designed as complete flat, which is suitable for welding of flat plate with multiple welding spots on the surface and be able to guarantee both the smoothness of surface and the consistency of welding spots.

Specification

Model	WL-SF-50/75/100K
Input Power (V/φ)	380/3
Rated Power (KVA)	50/75/100
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Electrode Force (KG)	250-400
Wleding Thickness (MM)	3.0+3.0
Warranty	1 years

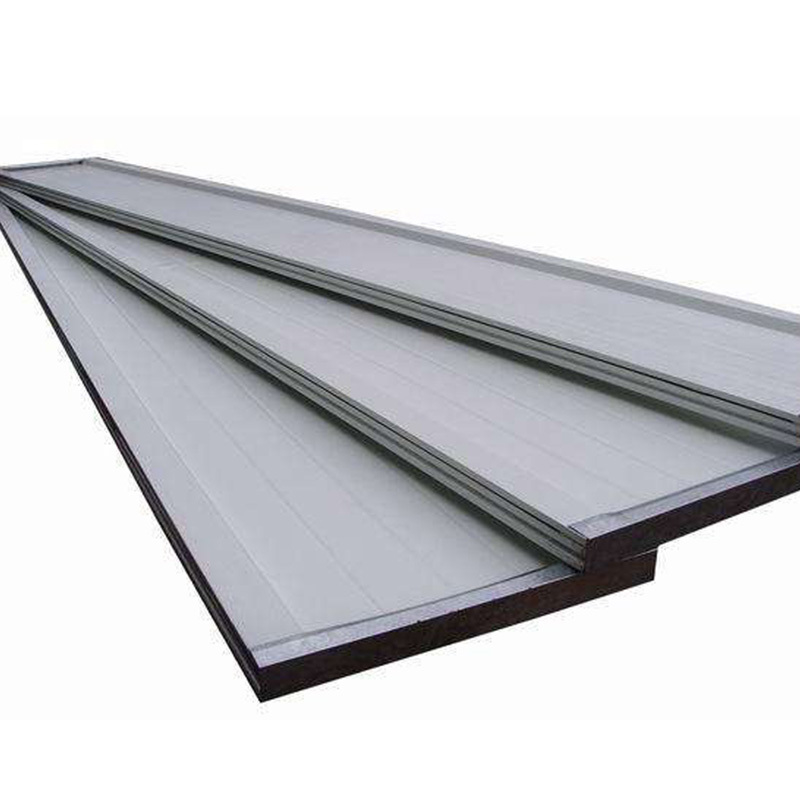

Application and samples

We can provide customized service for you. Our engineers will discuss the specific welding requirement with you and come out with the suitable technical proposal based on your samples or drawings.

Applicable industries:

Various industries such as chassis and cabinets, elevators, electrical cabinets, automobiles, steel and wood furniture, kitchen appliances, etc.

Factory & Certificate

HWASHI : 22 years+ experience welding solutions expert

Guangdong Hwashi Technology Inc. which was established in 2001, is located in Huizhou, Guangdong province in China. We are the high-tech enterprise which is specialized in developing, manufacturing, and selling of resistance welding machine, automatic welding machine and industrial robot station. We have total two manufacturing plants covering an area about 60000 square meters.There are about 200 staffs in Hwashi, and among which there are more than 20 mechanical and electrical engineers. Most of our engineers got more than 10 years experience in welding industry. Until now, we got more than 70 patents regarding the welding machine projects. Our machines have been exported to more than 70 counrties in the world. And we have local distributor in Russia, Turkey, Romania, Saudi Arabia, Malaysia, Indonesia, India, and USA, etc. who will provide you professional pre-sales and after-sales service in local.
