Name: Hwashi Swinq Basewire Frame Welding Machine Iron Wire Row Welding Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-250K
Price: 25,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Las Wire Mesh >

Hwashi Swinq Basewire Frame Welding Machine Iron Wire Row Welding Machine

Hwashi Swinq wire welding machine

basewire frame welding equipment

iron wire row welder

Tempat asal:

Cina

Nama merek:

Hwashi

Sertifikasi:

Nomor model:

WL-SQ-250K

Hubungi kami

Permintaan Penawaran

Rincian Produk

Ukuran jala:

50-200mm

Kecepatan pengelasan:

Kecepatan tinggi

Mode operasi:

otomatis/Manual

Bentuk Jala:

Keranjang Kawat, jaring keranjang

Diameter Kawat:

0,2-2,5mm （Menurut Daya）

Sistem kontrol:

kontrol PLC

Kapasitas kekuatan:

Kapasitas tinggi

Nama produk:

Mesin Las Wire Basket Mesh

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

Harga

$10000-$40000

Kemasan rincian

Kotak Kayu

Waktu pengiriman

30-60 hari

Syarat-syarat pembayaran

T/T, L/C

Menyediakan kemampuan

10 set/bulan

Produk-produk terkait

video

New-Grade Automation for Wire Mesh Deck Shelving – Hwashi’s Production Line Delivers

Dapatkan Harga Terbaik

video

Harga terbaik Hwashi untuk kawat las jaring, harga mesin las otomatis rel handuk, Mesin las baris kecilMesin Kawat Las Jaring Kawat Rel Handuk Baris Kecil

Dapatkan Harga Terbaik

video

Hwashi CNC Auto Feeder Single Head Oven Racks Mesin Pengelasan, Wire Mesh/Kitchen Rack Otomatis Wire Mesh Spot Welding Machine

Dapatkan Harga Terbaik

video

Sistem Kontrol Listrik Mesin Pengelasan Wire Mesh dengan Sistem Pendingin dan Sistem Kontrol Operasi PLC

Dapatkan Harga Terbaik

Hubungi kami

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Hubungi sekarang

Deskripsi Produk

Hwashi Swinq Basewire Frame Welding Machine Iron Wire Row Welding Machine
As a brand with 20 years of accumulated resistance welding technology, the core advantage of Hwashi welding machines comes from technological breakthroughs in details. The equipment is equipped with a WD-KD 5 intelligent microcomputer controller, which can real-time monitor welding current, pressure and time, ensuring that the parameter error of each welding point is controlled within ±1%. The welding transformer is made of high-purity silicon steel sheets, with a magnetic permeability 25% higher than that of ordinary transformers. It not only reduces energy consumption by 15%, but also can maintain stable output during 8 hours of continuous high-intensity operation. In terms of material compatibility, whether it is low-carbon steel, stainless steel or galvanized iron wire, the equipment can be accurately matched through 8 adjustable current levels to avoid problems such as cold welding and burn-through. The imported German Semikron thyristor components can make the equipment have a trouble-free operation time of more than 10,000 hours, greatly reducing production losses caused by shutdown maintenance.

Introducing Hwashi’s state-of-the-art Automatic Wire Machine, a brand-new, fully automated production line engineered to revolutionize wire mesh deck shelving manufacturing. Designed for precision, speed, and reliability, this cutting-edge system redefines efficiency in creating high-quality wire mesh decking—perfect for warehouses, retail storage, and industrial shelving solutions.

Crafted to deliver peak performance from day one, the production line arrives in pristine, new condition, with every component calibrated to meet strict quality standards. Whether you’re scaling up production or launching a new shelving line, this system eliminates the hassle of outdated machinery, ensuring consistent output from the first run.

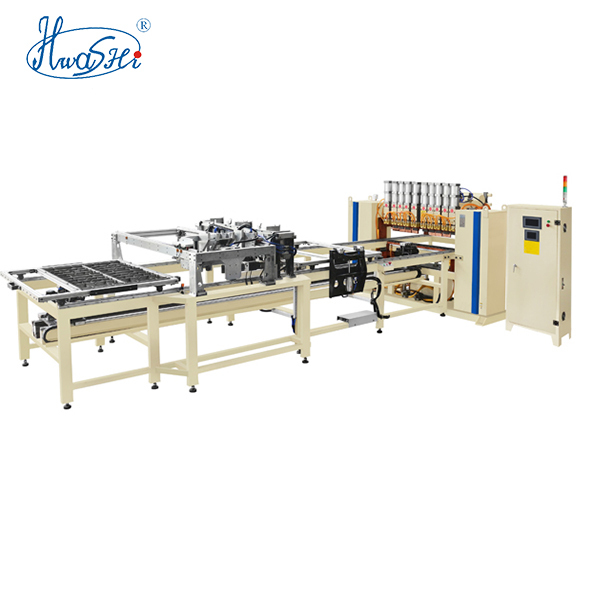

Hwashi Swinq Basewire Frame Welding Machine Iron Wire Row Welding Machine 0

Powerful Function: It makes full use of the characteristics of iron wires such as smooth surface, consistent wire diameter and thickness, and large welding area. With special fixtures, it achieves efficient, fast welding with little deformation. In addition to common squares and rectangles, it can also weld triangles, circles and other irregular plane meshes.

Technical Advantages: The welding control system adopts WD - KD 5 intelligent microcomputer controller, which can be matched with various welding controllers. It selects German Semikron, IXYS thyristors or American IR thyristors; the pneumatic control system is equipped with large-displacement solenoid valves and gas components, providing sufficient air supply, and adopts a quick exhaust cylinder with fast response and good servo performance. The welding transformer is made of high-purity silicon steel sheets, with excellent magnetic conductivity and electrical conductivity, low power consumption, and can weld 8mm + 8mm low-carbon steel plates.

Hwashi Swinq Basewire Frame Welding Machine Iron Wire Row Welding Machine 1

Hwashi Swinq Basewire Frame Welding Machine Iron Wire Row Welding Machine 2

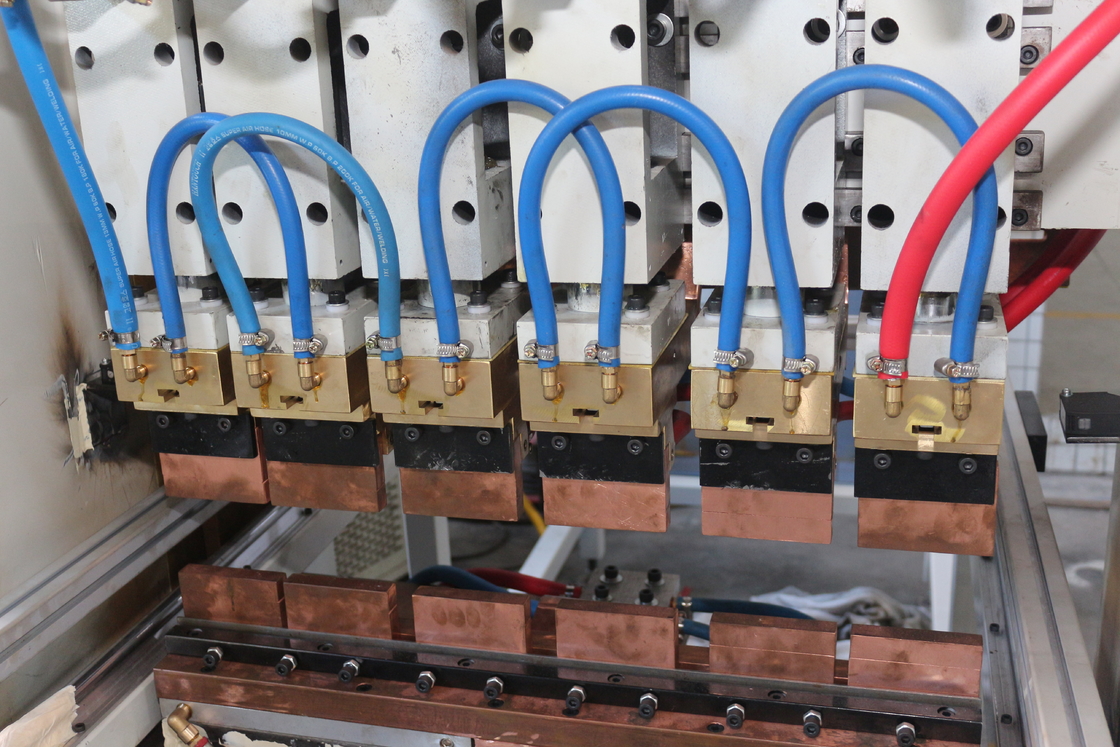

Welding Heads and Fixtures

Processing and design according to the drawings of each wire shelf product. (customized)

Hwashi Swinq Basewire Frame Welding Machine Iron Wire Row Welding Machine 3

Hwashi Swinq Basewire Frame Welding Machine Iron Wire Row Welding Machine 4

Hwashi Swinq Basewire Frame Welding Machine Iron Wire Row Welding Machine 5
