Name: Hwashi Wl-Sp-1ook AC Spot Welding Machine High-Performance Electric Spot Welders
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-CD-25K
Price: 25,000.00 USD
Availability: InStock

Rumah > Produk > Mesin Pengelasan Discharge Capacitor >

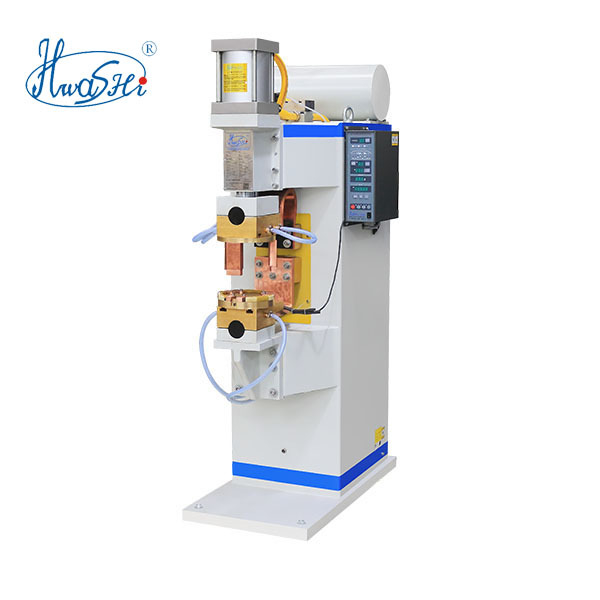

Hwashi Wl-Sp-1ook AC Spot Welding Machine High-Performance Electric Spot Welders

Wl-Sp-1ook AC Spot Welding Machine

AC Spot Welding Machine

High-Performance Electric Spot Welders

Place of Origin:

China

Nama merek:

HWASHI

Sertifikasi:

CE/CCC/ISO

Model Number:

WL-CD-25K

Hubungi kami

Permintaan Penawaran

Rincian Produk

Product Name:

Hwashi Wl-Sp-1ook AC Spot Welding Machine High-Performance Electric Spot Welders

Size:

950mm*800mm*1675mm

Application:

Welding of stainless steel,steel belt. steel strip. cookware

Weight:

350 KG

Power (KW):

Warranty:

12 months

Standard:

CE/CCC/ISO

Service Life:

8-10 years

Ketentuan Pembayaran & Pengiriman

Minimum Order Quantity

1 set

Harga

Dapat dinegosiasikan

Packaging Details

sea worthy wooden package

Delivery Time

7-30 working days after received your payment

Payment Terms

L/C, T/T, Western Union

Supply Ability

50 sets per month

Produk-produk terkait

video

Mesin pengelasan pelepasan kondensator 15KVA untuk pegangan panci peralatan masak SS

Dapatkan Harga Terbaik

video

Hwashi 15KVA Kondensator Discharge Welding Machine untuk SS Cookware Pot Handle

Dapatkan Harga Terbaik

15kVA Air Cooling Capacitor Discharge Welding Machine untuk Electric Powered Welding

Dapatkan Harga Terbaik

video

Waktu Pengelasan 15 KVA Kondensator Discharge Mesin Pengelasan dengan Sertifikasi CE / ISO

Dapatkan Harga Terbaik

Hubungi kami

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Hubungi sekarang

Deskripsi Produk

Product Description

Hwashi Wl-Sp-1ook AC Spot Welding Machine High-Performance Electric Spot Welders 0

AC pulse spot welding machine utilizes the general mains supply to lower the voltage and increase the electric curent, Such kind of lowvoltage but large current will be transmitted from the electrode to the linked point of two work pieces. On the linkage, due tothe resistance of work piece, high temperature will occur so the metal wil therefore generate high heat to make the work piecesin molten condition. Thus, the purpose of welding the two work pieces is achieved.

Hwashi Wl-Sp-1ook AC Spot Welding Machine High-Performance Electric Spot Welders 1

Hwashi Wl-Sp-1ook AC Spot Welding Machine High-Performance Electric Spot Welders 2

Hwashi Wl-Sp-1ook AC Spot Welding Machine High-Performance Electric Spot Welders 3

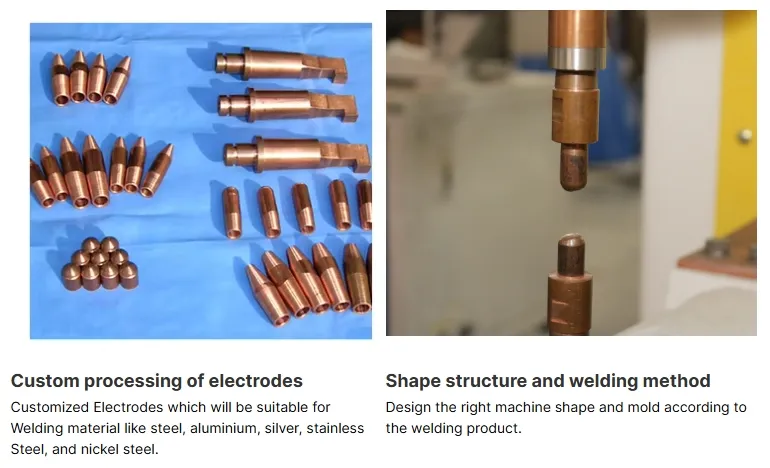

Shape structure and welding method

Design the right machine shape and mold according tothe welding product.

Features of The AC Pulse Spot Welding Machine
1. Multiple same ways forced water cooling system to ensure stability and reliability of long-term operation. 2. Pressurized electrode speed can be adjusted, slow down the impact to welding work piece when pressuring, also reduces the noise when welding.

3. Integrated pressurizing mechanism with good followability, fast welding speed and long service life. 4. High permeability silicon steel transformer and high power silicon controlled components provide strong output power. 5. Different output currents can be controlled and adjusted at will to satisfy various welding processes.

Model	Input Voltage	Input Power	Output Current	Pressurization	Electrode Stroke	Closure	Platform Distance	Electrode Distance
Model		V	KVA	A	kg	mm	mm	mm	mm
WL-S-3K	220	10	5000	200	50	65-115	-	145-165
WL-S-5K	220	10	6000	200	50	65-115	-	145-165
WL-S-10K	220	10	8000	200	50	65-115	-	145-165
WL-S-16K	380	16	10000	300	80	-	-	-
WL-S-25K			25	12000	300	80	-	-	-
WL-S-35K			35	16000	350	80	-	-	-
WL-S-50K			50	19500	500	80	-	-	-
WL-SP-25K			25	12000	300	80	145-225	250	320-420
WL-SP-35K			50	16000	350	80	145-225	250	320-420
WL-SP-50K			50	19500	500	80	145-225	250	320-420
WL-SP-75K			75	24000	1000	100	130-230	260	490-540
WL-SP-100K			100	34000	1000	100	130-230	260	490-540
WL-SP-150K			150	40000	1000	100	130-230	260	490-540
WL-SP-200K			200	50000	1500	100	130-230	260	490-540
WL-P-75K			75	24000	1000	100	130-230	260	-
WL-P-100K			100	34000	1000	100	130-230	260	-
WL-P-150K			150	40000	1000	100	130-230	260	-
WL-P-200K	380	200	50000	1500	100	130-230	260	-
WL-P-300K	380	300	75000	2000	100	130-230	260	-
