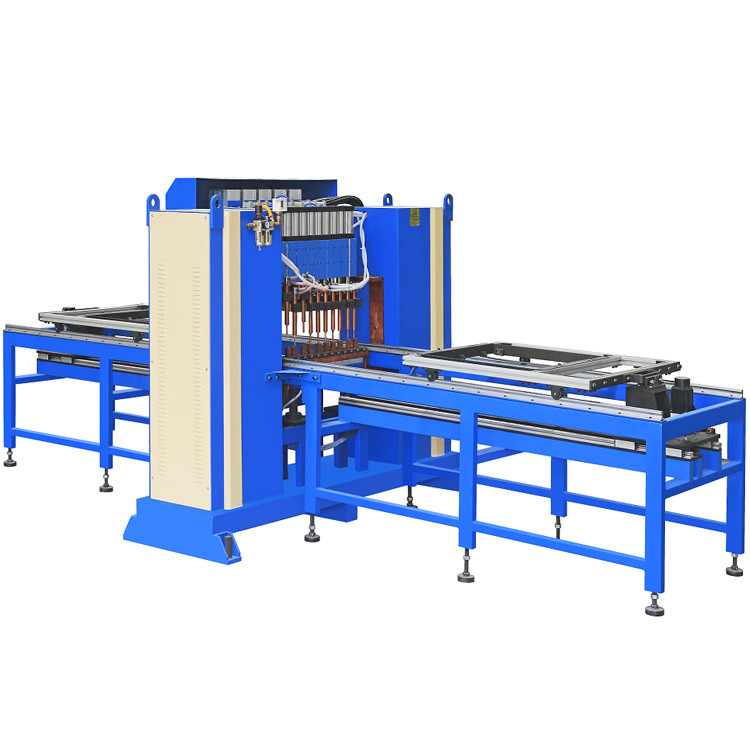

Name: Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SF-MF-100K/120K/160K
Price: 375,000.00 USD
Availability: InStock

Rumah > Produk > Penyelenggara Metal Lembar >

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine

Gantry Type Inverter Welding Machine

Automatic Door Welding Machine

Sheet Metal Welding Machine

Tempat asal:

Cina

Nama merek:

HWASHI

Sertifikasi:

Nomor model:

WL-SF-MF-100K/120K/160K

Hubungi kami

Permintaan Penawaran

Rincian Produk

Nama produk:

Hwashi Sheet Metal Kustom Spot Welder Steel Floor Galvanis Panel Otomatis Mesin Pengelasan Spot Untu

Dimensi ((L*W*H):

2500x1200x1950mm

Berat badan:

800KG

Penggunaan:

Pengelasan panel baja

Jaminan:

1 tahun

Transformator:

Trafo MF DC

Ketentuan Pembayaran & Pengiriman

Kuantitas min Order

1 set

Harga

Dapat dinegosiasikan

Kemasan rincian

Paket Kayu Layak Laut

Waktu pengiriman

20 - 30 hari kerja setelah menerima pembayaran Anda

Syarat-syarat pembayaran

L/C, T/T

Menyediakan kemampuan

50 set per bulan

Produk-produk terkait

video

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine

Dapatkan Harga Terbaik

video

Hwashi Security Stainless Sheet Door Plate Multi-Point Automatic Mobile Type Spot Welding Machine, Sheet Metal Welder

Dapatkan Harga Terbaik

video

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine for Squatrack

Dapatkan Harga Terbaik

video

Hwashi CNC Seven 7axis Double Heads Sheet Metal Spot Weldinq Mesin, Otomatis Sheet Metalwelder untuk Squatrack

Dapatkan Harga Terbaik

Hubungi kami

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Hubungi sekarang

Deskripsi Produk

HWASHI Sheet Metal Custom Spot Welder Steel Floor Galvanized Panel Automatic Spot Welding Machine for Metal Plate

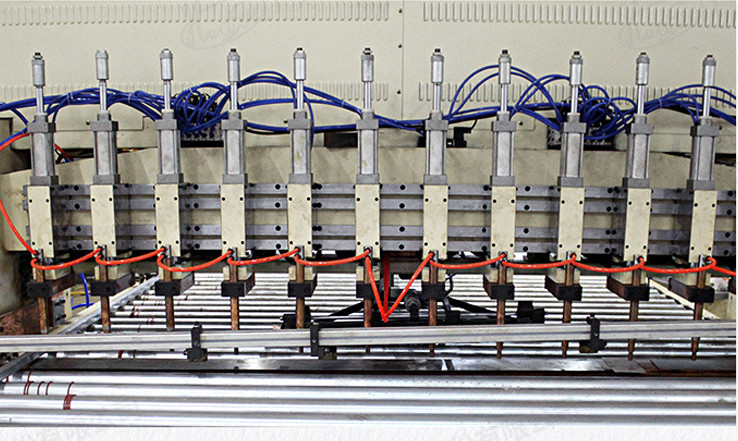

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine 0

Product Description 1. Intellectual touch-screen microcomputer controller, completely digital control, automatic detection and compensation, loose welding and false welding are well prevented. 2. Panasonic touch-screen hunan-computer interface, Panasonic programmer is adopted as the control hub, in charging of reading and dealing with control signal to guarantee that the machine operation is in order and effective. 3. roups of welding electrodes can be moved from left to right, all kinds of products are suitable to be welded. Welding electrodes can work in flexible order. No metal sheet deformation Welding Method: Since the work piece is sealed, then T Type welding is adopted. The bigger tube is placed in the Groove R of the bottom mould. The smaller tube is placed on the top. Instantaneous large current of welding method. The Maximum current could reach 200KA. Locating Mode: The bigger tube is clamped in the Groove R of the bottom mould while the smaller tube is clamped and located on the top. Electrode Mode: Since this work piece is circular tube, then the upper and lower electrodes both adopt the mosaic structure with R. The top electrode adopts floating terminal device to ensure the smoothness of the welding surface. Feeding Mode: The operator could conduct feeding on both sides at the same time. Welding on the left while feeding on the right. Optimize the welding efficiency.

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine 1

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine 2

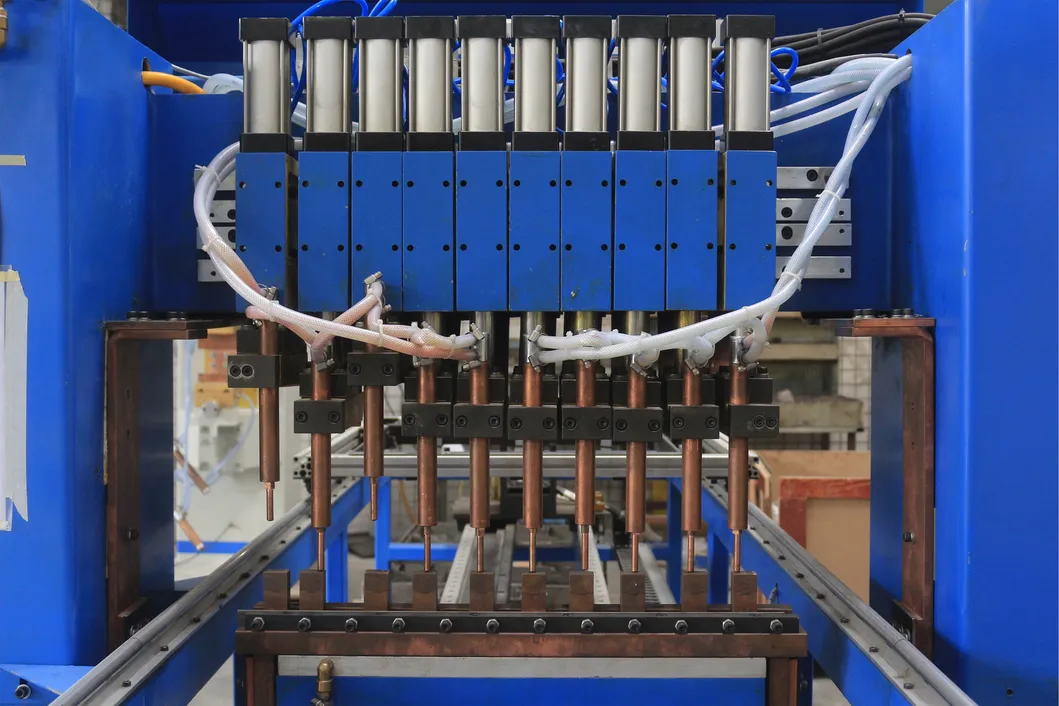

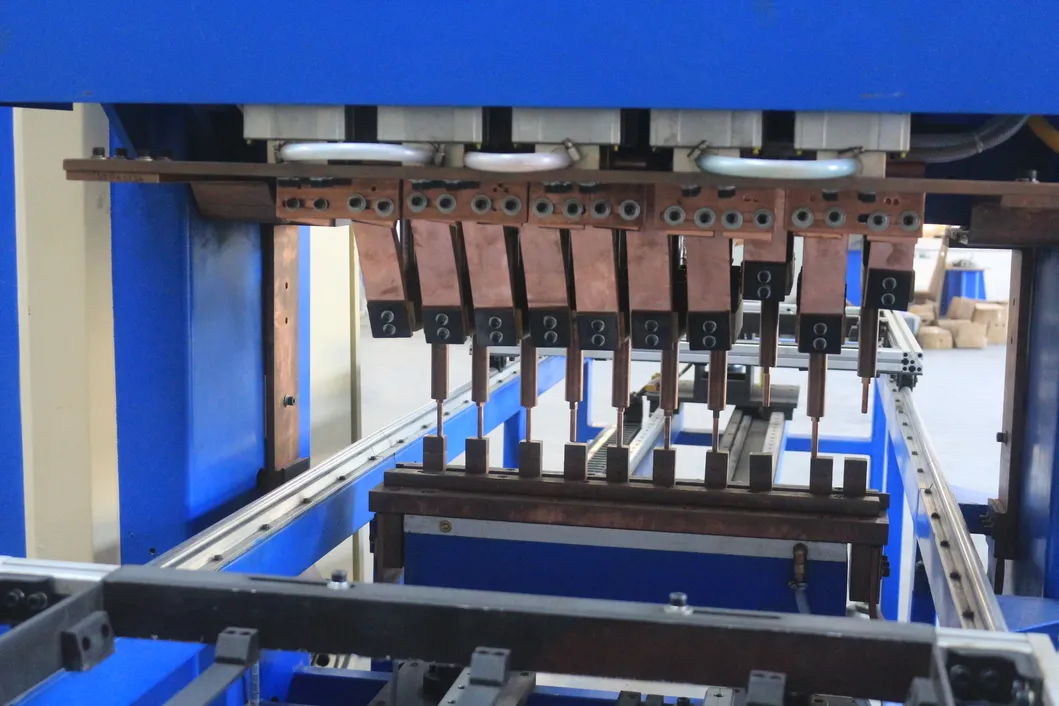

Welding Heads

Processing and design according to the drawings of each metal plate product. (customized)

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine 3

Hwashi Latest Automatic Door Sheet Metal Gantry Type Inverter Welding Machine 4

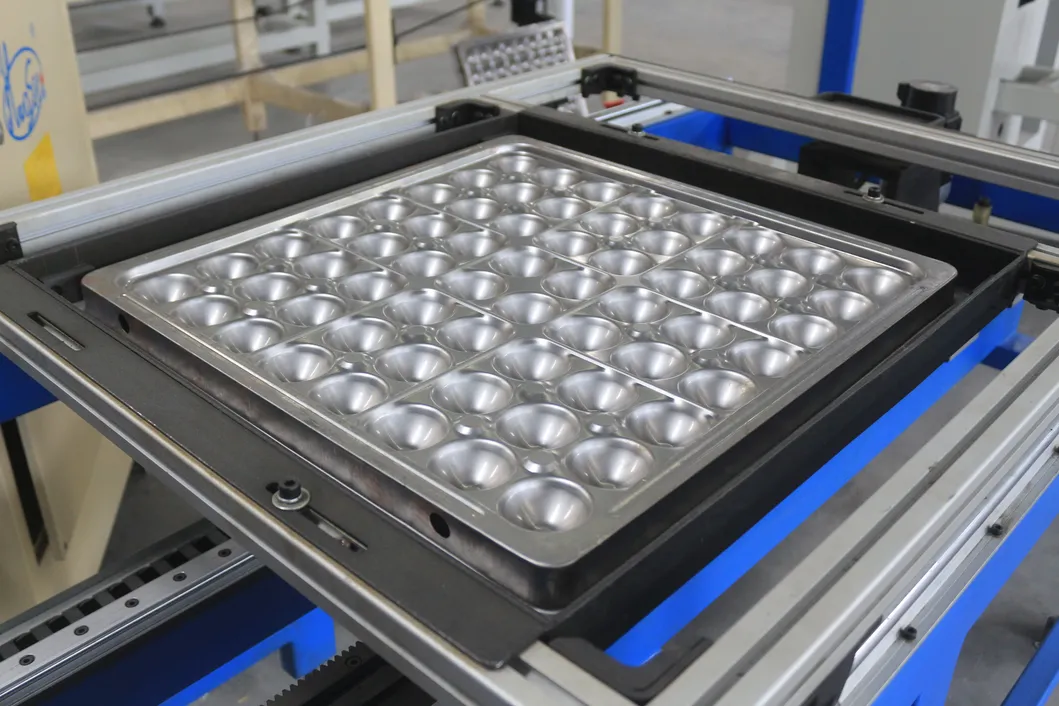

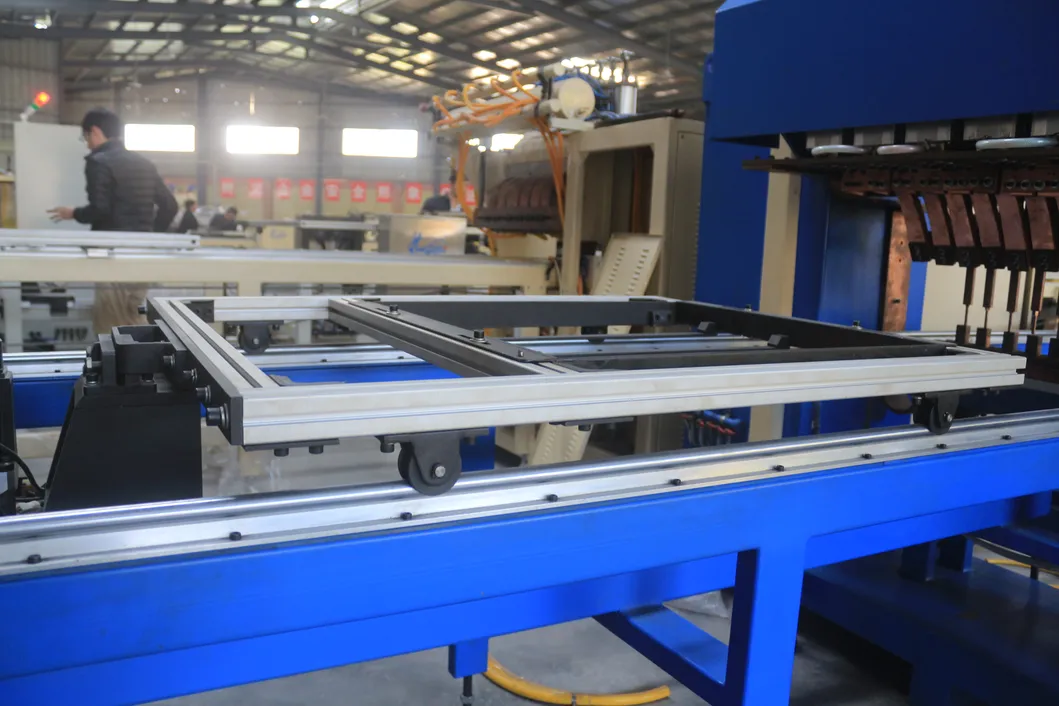

Automatic Feeding And Welding System

This Automatic Spot Welding Machine for conveyor belt Feeder is using the workpiece, then the workpiece will be transported to the setting position. The machine will conduct welding

No. S.N	Item	Specification	Description
1	Input voltage	380V ,2-phases	It can be customized, but only for 2-phases.
2	Input current	400A
3	Output voltage	12V
4	Max.Welding current	34000A
5	Effective welding width	1200mm (ajustable)
6	Effective welding length	3000mm (ajustable)
7	Feeding Rack Mobile speed	0.5m/sec	Servo motor transmitting
8	Upper welding air cylinder	100x100mm	Double force pressing cylinder
9	Lower cylinder	160x100mm
