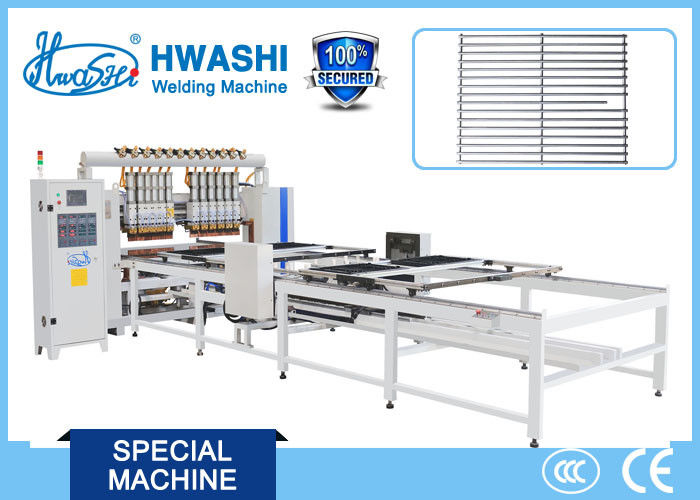

Twelve-Head Multipoint Semi-Automatic Wire Mesh Welding Machine with Automatic Ejection System
DESCRIPTION
The effective welding size 800mmx800mm wire diameter: Ø3-8mm, 2 pcs welding at one time,
including:
1. Main body-1 set
2. AC power source-4 sets
3. One side double-layer automatic feeder
4. fixtures-2 sets
5. Automatic ejection system
6. 3HP Water Chiller
SPECIFICATION
| Model | WL-SQ-150K×4 |
| Input Voltage | two-phase 380 V |
| Input Current | 400 A |
| Output Voltage | 12V |
| Max Short Circuit Current | 45000 A |
| Welding Effective Width | 800mm ( customized) |
| Welding Effective Length | 800mm ( customized) |
| Feeder Moving Speed | 500 mm/sec |
| Upper Welding Cylinder | ￠ 100 x 100 mm |
| Lower Welding Cylinder | ￠ 160 x 100 mm |
