Steel Cabinet Corner Automatic Spot Welding Machine With Loading Robot

Informasi Dasar
Place of Origin: China
Nama merek: HWASHI
Sertifikasi: CE/CCC/ISO
Model Number: WL-MF-100Kx4
Minimum Order Quantity: 1 set
Harga: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 45 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
Informasi Detail
Product Name: Automatic Spot Welding Machine With Loading Robot , Steel Cabinet Welding Machine Application: Welding steel cabinet corner
Size: 2000x1800x2200mm Weight: 4500kg
Condition: New Warranty: 12 months
Standard: CE/CCC/ISO Service Life: 8-10 years
Cahaya Tinggi:

automatic spot welding machine

,

automatic seam welding machine


Deskripsi Produk

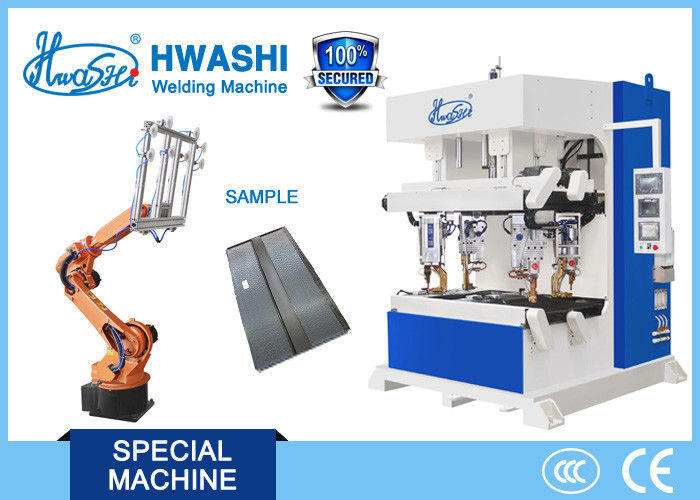

Steel Cabinet Corner Automatic Spot Welding Machine With Loading Robot

DESCRIPTION

This special automatic welding machine for welding Steel Cabinet corner with automatic loading and unloading robot



Part 1 : Automatic Spot Welding Machine



  • Main Body:Adopt the reinforced special design steel structure body with gantry type structure. According to the sample, it is designed gantry type stucture with 6 groups of welding heads. Maximum welding width is 1000mm while the feeder length is 4000mm. It adopts reasonable stress center of gravity to ensure the stable intensity of the main body when conducting fast speed welding. At the meantime, it could provide stress supporting point and working platform for other actions.



  • Power Source System: Adopt 4sets of 100KVA medium frequency inverter welding source. Maximum short circuit current is 21000A. Duty cycle rate reaches 25%. The three-phase power supply is under rectifying through a special inverter and converted to1000Hz AC voltage and then be transmitted to a medium frequency transformer to be rectified so as to provide DC welding current. Compare with general AC pulse power supply, this kind of power source could be fast and precisely adjusted. Small impact to the power grid and lower requirement for the power grid compare with the single-phase welder of the same capacity.



  • Welding Control System: Adopt the self-developed intelligent microcomputer quick response touch controller, all-digital control, simple and clear operational interface. Automatic testing and compensation which could guarantee the situation that the machine will be at work only when the current value is in the preset data so as to ensure the stability of welding effect and effective prevention of undesirable phenomena like loose welding and cold joint. The features of quick response and high precision of control may help you obtain high quality of welding spots.



TECHNICAL PARAMETERS



No. Model WL-SQ-MF90Kx4
1 Input Power Three-phase
2 Rated Capacity 100KVAx4
3 Rated Input Current 300A
4 Rated Duty Cycle Rate 25%
5 Secondary Voltage Adjusting Grade 2
6 Max Secondary Floating Voltage 12.5V
7 Secondary Max Short Circuit Current 26KA
8 Continuous Working Current 20KA
9 Welding Transformer Insulation Grade F
10 Welding Machine Pressuring Curves 2 types
11 Welding Programs Number 101 types
12 Welding Head 6 sets


Part 2:  Automatic Loading and Unloading Robot


Items Parameters
Model HS-20RH
Degrees of Freedom 6
Driving Method AC servo driving
Max. Payload 20kg
Repeated Positioning Accuracy ±0.05mm
Motion Range J1Axis ±170°
J2Axis +120°~ -85°
J3Axis +85°~ -165°
J4Axis ±180°
J5Axis ±135°
J6Axis ±360°
Max. Speed J1Axis 2.27rad/s, 130°/s
J2Axis 2.27rad/s, 130°/s
J3Axis 2.27rad/s, 130°/s
J4Axis 3.93rad/s, 225°/s
J5Axis 2.53rad/s, 145°/s
J6Axis 6.98rad/s, 400°/s
Allowed Torque J4Axis 12N.m
J5Axis 10N.m
J6Axis 8N.m
Environment Temperature 0℃~55℃
Humidity 20%~80%(No frost)
Other

Avoid inflammable, explosive, corrosive gas and liquid;
No water, oil, dust;
Keep away from noise(plasma)

Installation Method Ground installing
Robot Main body 180kg
Power Three-phase 380V,50HZ/60HZ,3.6KVA
Electric Cabinet Weight 200kg




                 Steel Cabinet Corner Automatic Spot Welding Machine With Loading Robot 0









Steel Cabinet Corner Automatic Spot Welding Machine With Loading Robot 1



Steel Cabinet Corner Automatic Spot Welding Machine With Loading Robot 2       Steel Cabinet Corner Automatic Spot Welding Machine With Loading Robot 3



Loading Robot and Unloading Robot Working Picture



Steel Cabinet Corner Automatic Spot Welding Machine With Loading Robot 4Steel Cabinet Corner Automatic Spot Welding Machine With Loading Robot 5

Steel Cabinet Corner Automatic Spot Welding Machine With Loading Robot 6
